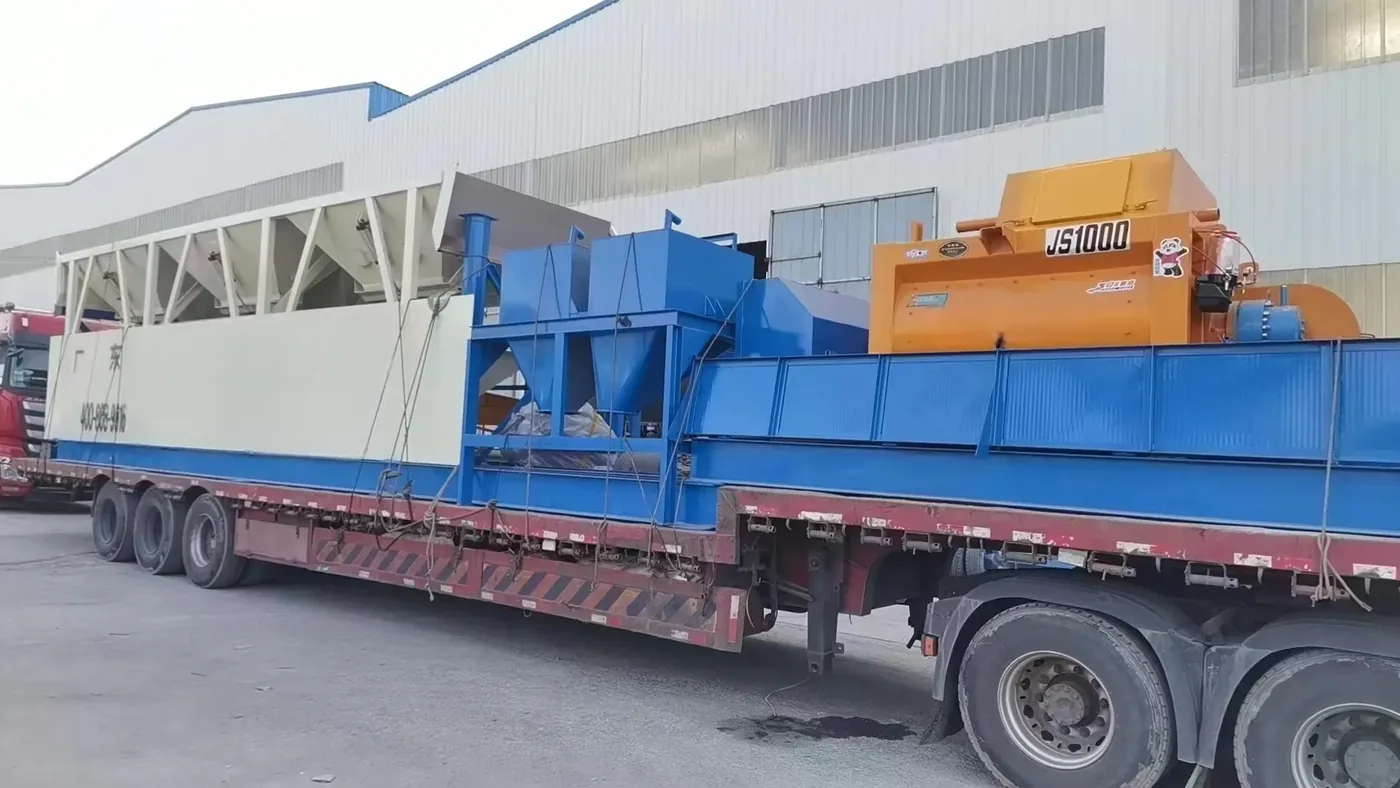

Module split shipment
Batching, conveying, mixing, and control equipment are organized by modules, facilitating transport in parts and on-site connection.
MODULAR CONCRETE BATCHING PLANTS
Modular Concrete
batching plant
modular concrete batching plant organizes feeding, conveying, mixing, and control equipment by modules, supporting split shipment and on-site connection. The foundation-free series options include HZS50, 60, 75, 90, 120; HZS120 refers to theoretical capacity 120 m³/h.
Series ScopeHZS50—HZS120
Ingredient Combination2–5 Bins
Structural DirectionModule Combination
Procurement Methodcomplete plant / Supporting
PRODUCT FEATURES
Equipment features
Various HZS models
The basic-free series provides models HZS50 / 60 / 75 / 90 / 120, covering different production needs.
complete plant system support
Can be equipped with aggregate bin, twin-shaft main mixer, powder storage, metering, conveying, and electrical control equipment.

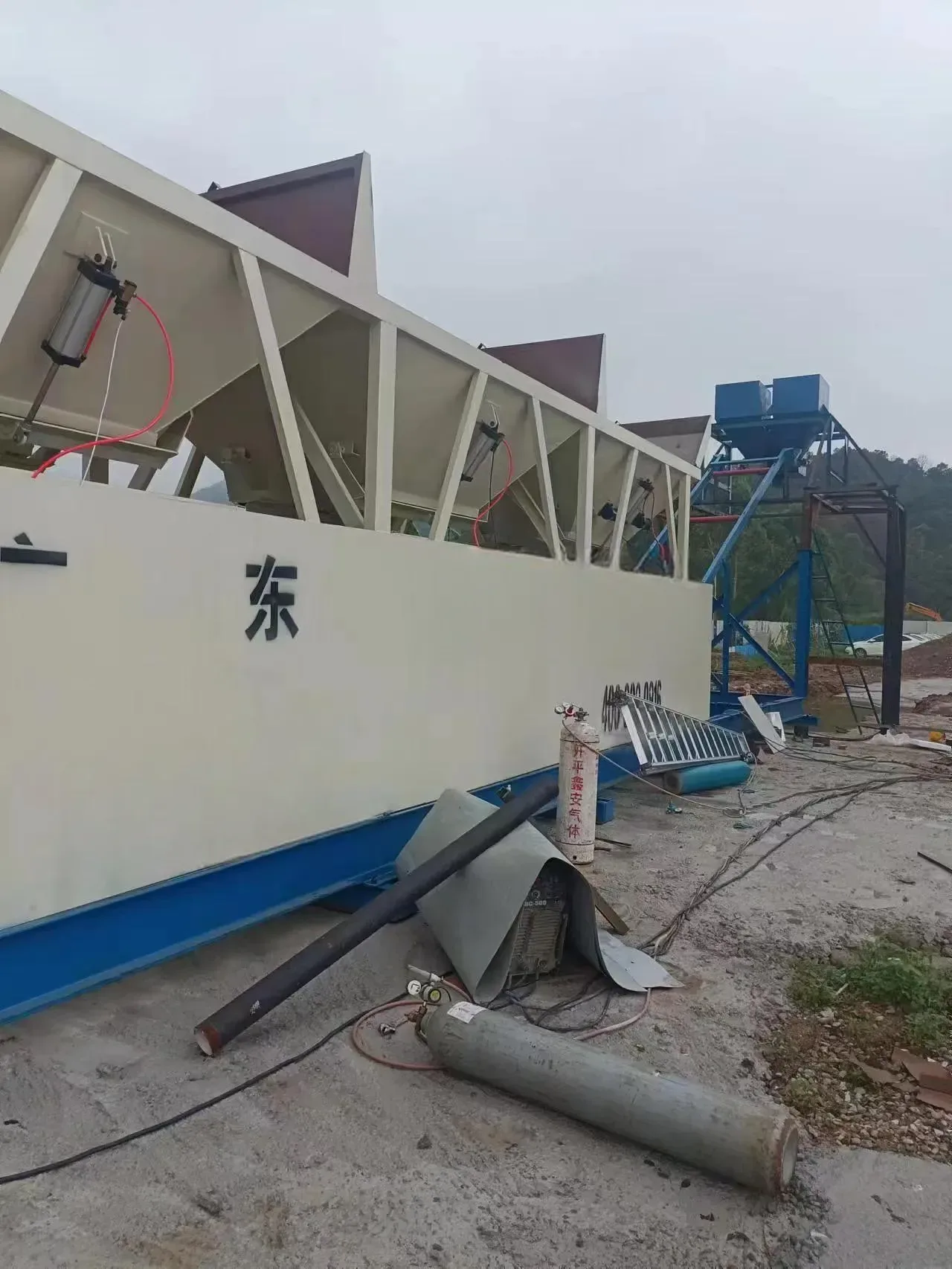

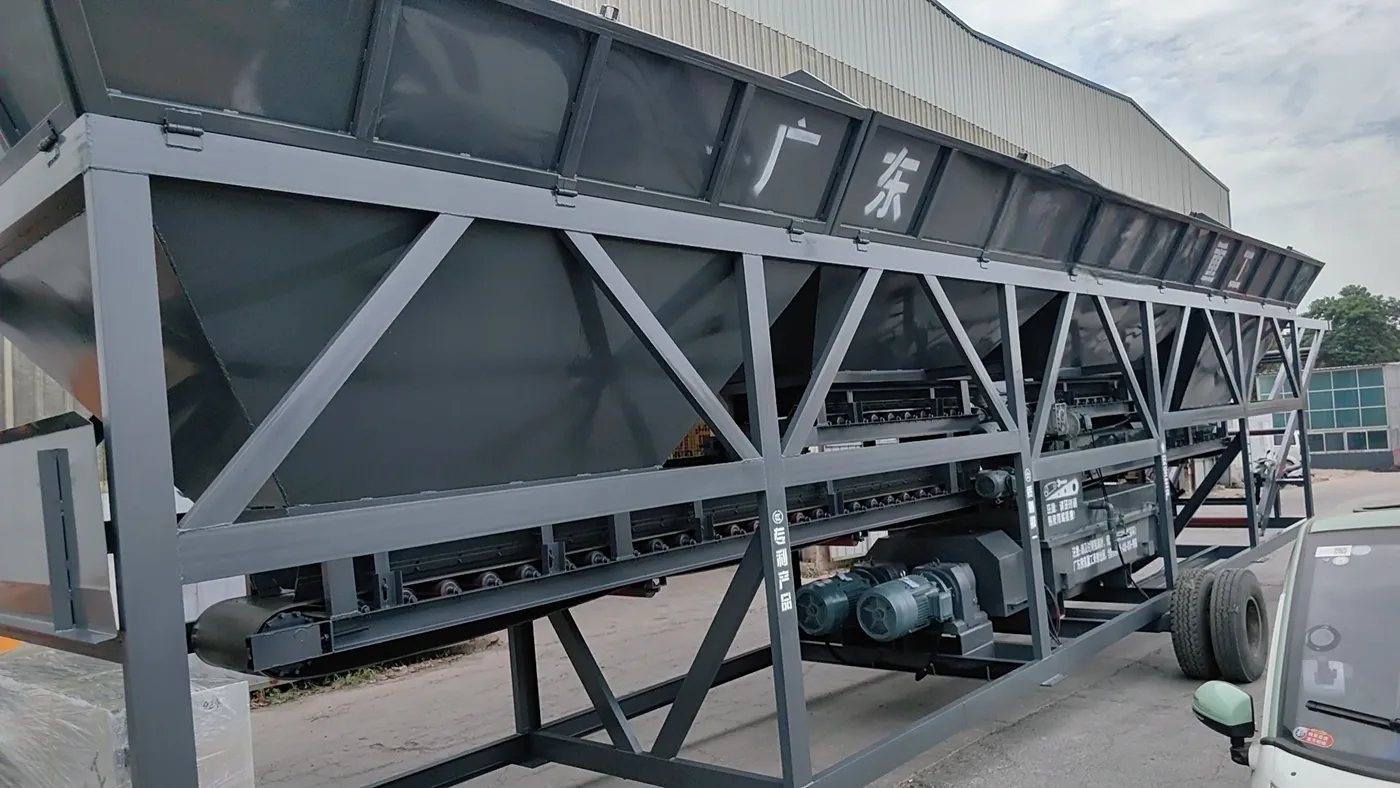

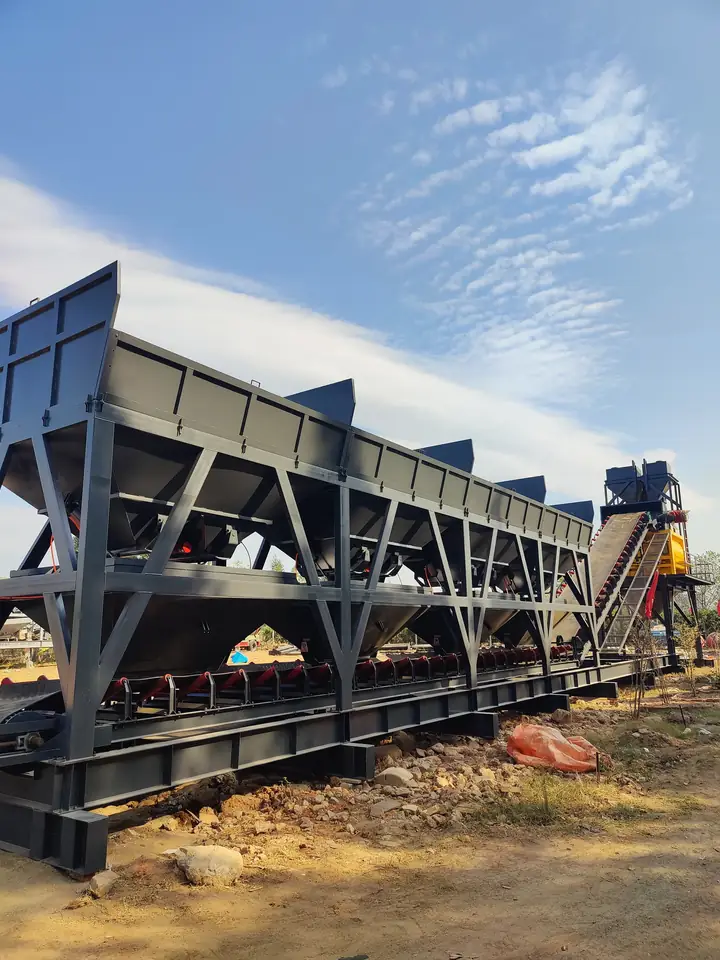

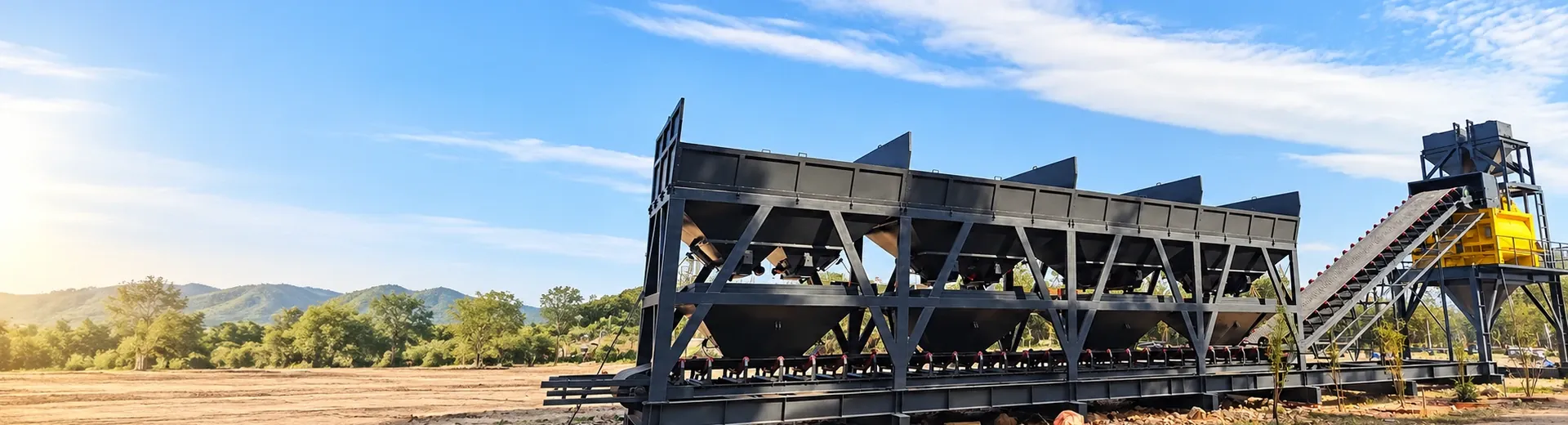

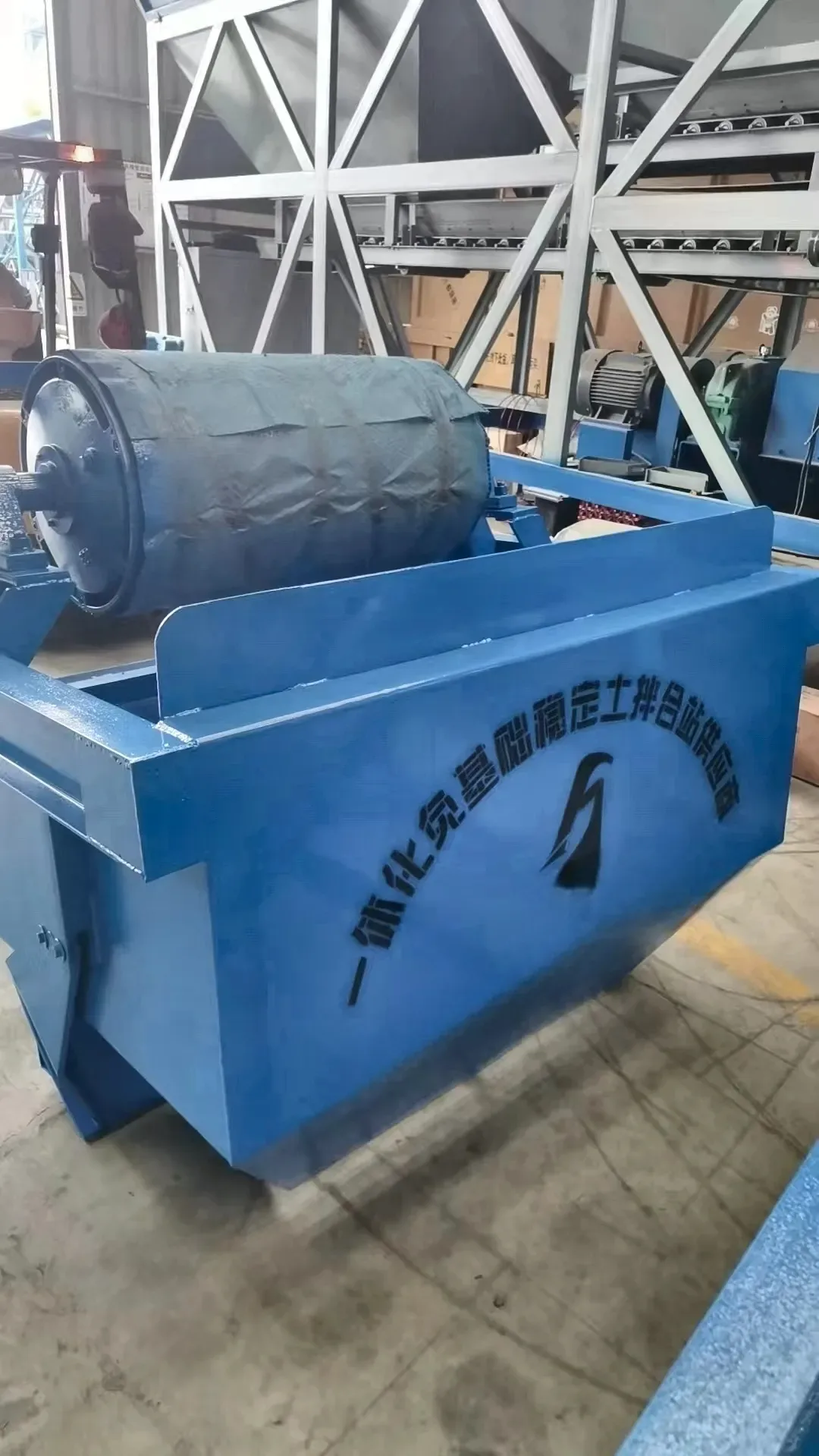

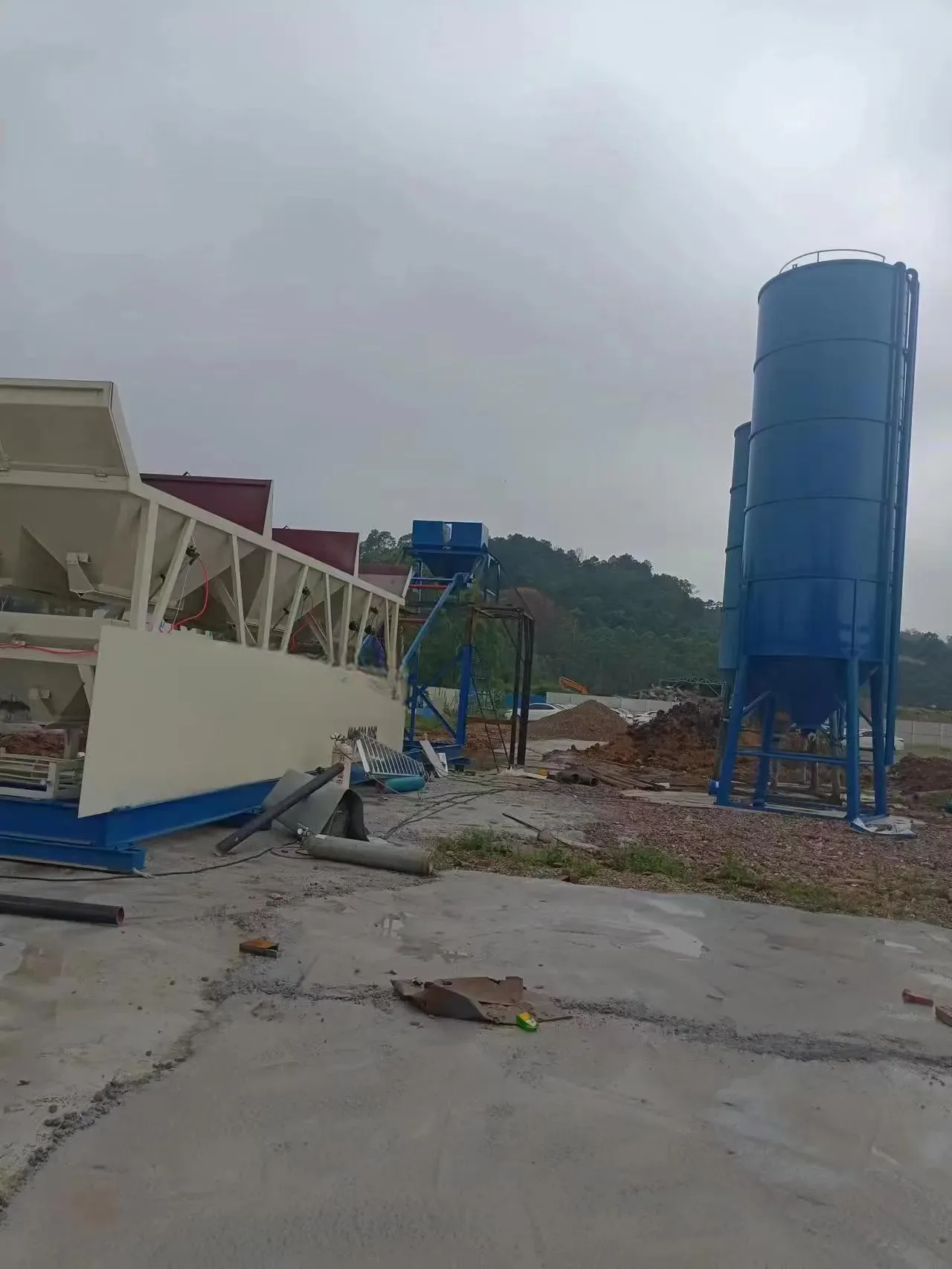

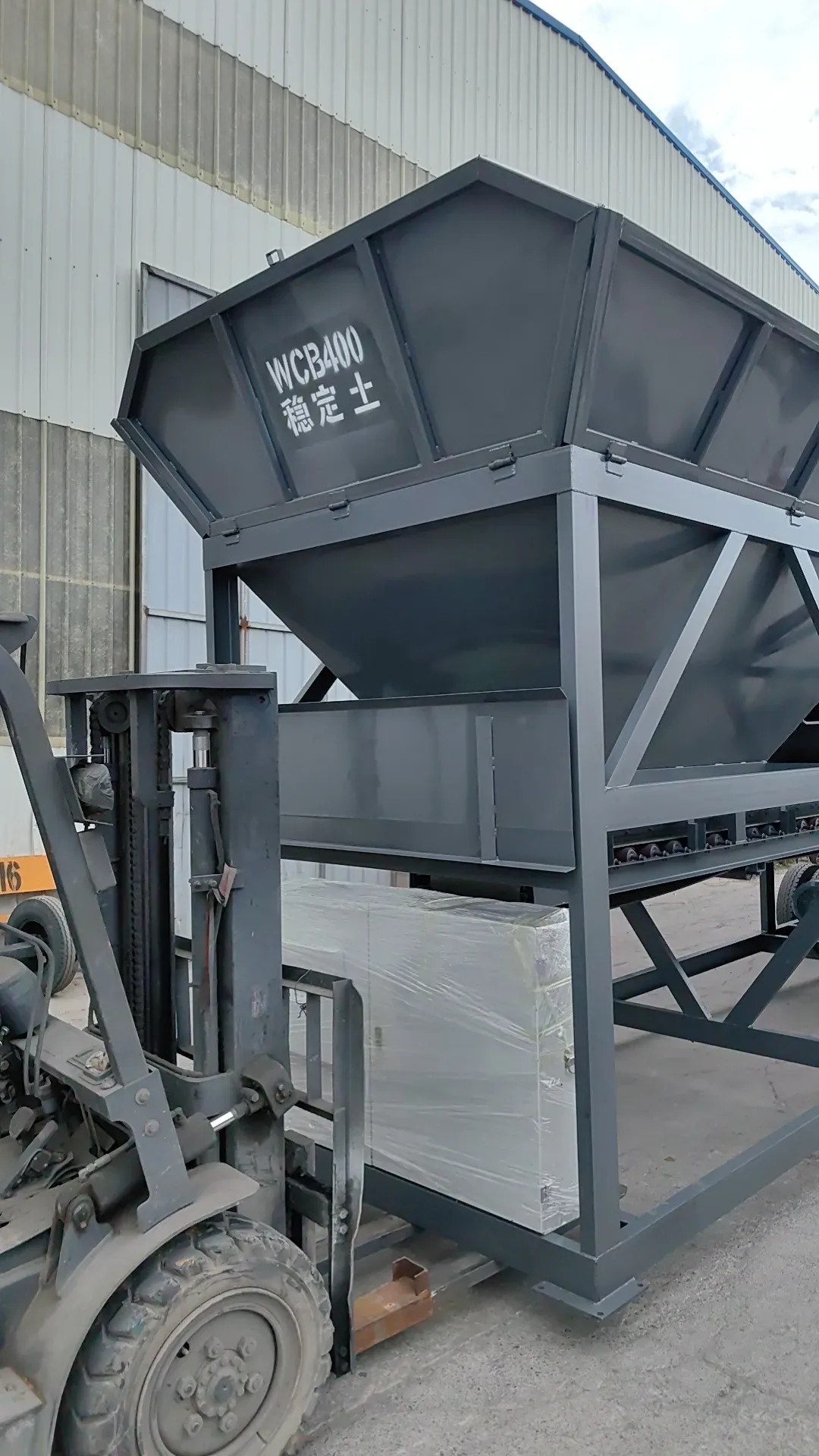

REAL EQUIPMENT / PROJECT PHOTOS
Equipment Layouts and Details
Explore equipment layouts, components and installation details. Request the specifications and supply list for the configuration you need.
TECHNICAL SPECIFICATIONS
HZS120 Reference Parameters
| Configuration Items | Parameters / Equipment Range |
|---|---|
| theoretical capacity | 120 m³/h |
| main mixer | JS2000 |
| Nominal Output | 2000 L / Batch |
| main mixer mixing power | 2 × 37 kW |
| discharge height | 4.2 m |
| Foundation-free series models | HZS50 / HZS60 / HZS75 / HZS90 / HZS120 |
Models and parameters come from the product catalog, and theoretical capacity is used to compare models; actual hourly output is calculated based on the full production cycle, and supply content is subject to the quotation list.
TYPICAL APPLICATIONS
Typical Applications
Engineering Self-built batching plant
For on-site concrete production, configure batching, mixing, and discharge equipment.
Ready-Mix Concrete Production
Can be used for concrete supply to residential, commercial buildings, and construction clients, configuring complete plant in combination with formulas, shifts, and vehicle loading rhythms.
Phased Construction Projects
Arrange modules and site layout in conjunction with transportation, installation, and expansion plans.
PRODUCT QUESTIONS
Product Frequently Asked Questions
Does modular equal foundation-free?
The modular description details the organization and connection method of the equipment, without a foundation description for specific installation forms. Foundation-free equipment is also configured according to site load-bearing and installation conditions.
What are the parameters of 120 m³/h for HZS120?
This is the theoretical capacity marked in the catalog. Actual hourly output is affected by formula, mixing time, feeding, metering, and vehicle material reception conditions.
Does quotation include powder silo and conveying equipment?
Purchasing can be done according to the complete plant list, or the main equipment can be purchased separately. Send the required number of bins, storage material requirements, and existing equipment, and we will arrange according to the specified range quotation.
GET A QUOTATION
modular concrete batching plant quotation
Send the required model, target output and project destination to get equipment configuration, the supply list, and quotation.
