HZS120 / 120 M³/H CLASS
HZS120 is concrete production equipment that integrates aggregate batching, material conveying, metering, mixing, and electrical control systems. The reference configuration on this page uses JS2000 twin-shaft main mixer, with a nominal output of 2000 L per batch, catalog theoretical capacity 120 m³/h.
TECHNICAL SPECIFICATIONS
| Configuration Items | Parameter |
|---|---|
| theoretical capacity | 120 m³/h |
| main mixer | JS2000 |
| Nominal Output | 2000 L / batch ( 2 m³ / batch ) |
| main mixer mixing power | 2 × 37 kW |
| discharge height | 4.2 m |
The above is a reference configuration for the product catalog. Actual supply shall be based on the confirmed quotation list. 120 m³/h is theoretical capacity, and the actual hourly output is affected by the formula, mixing time, feeding, and vehicle receiving conditions. 2 × 37 kW is main mixer mixing power, and the total power consumption of complete plant should be determined according to the supporting equipment.

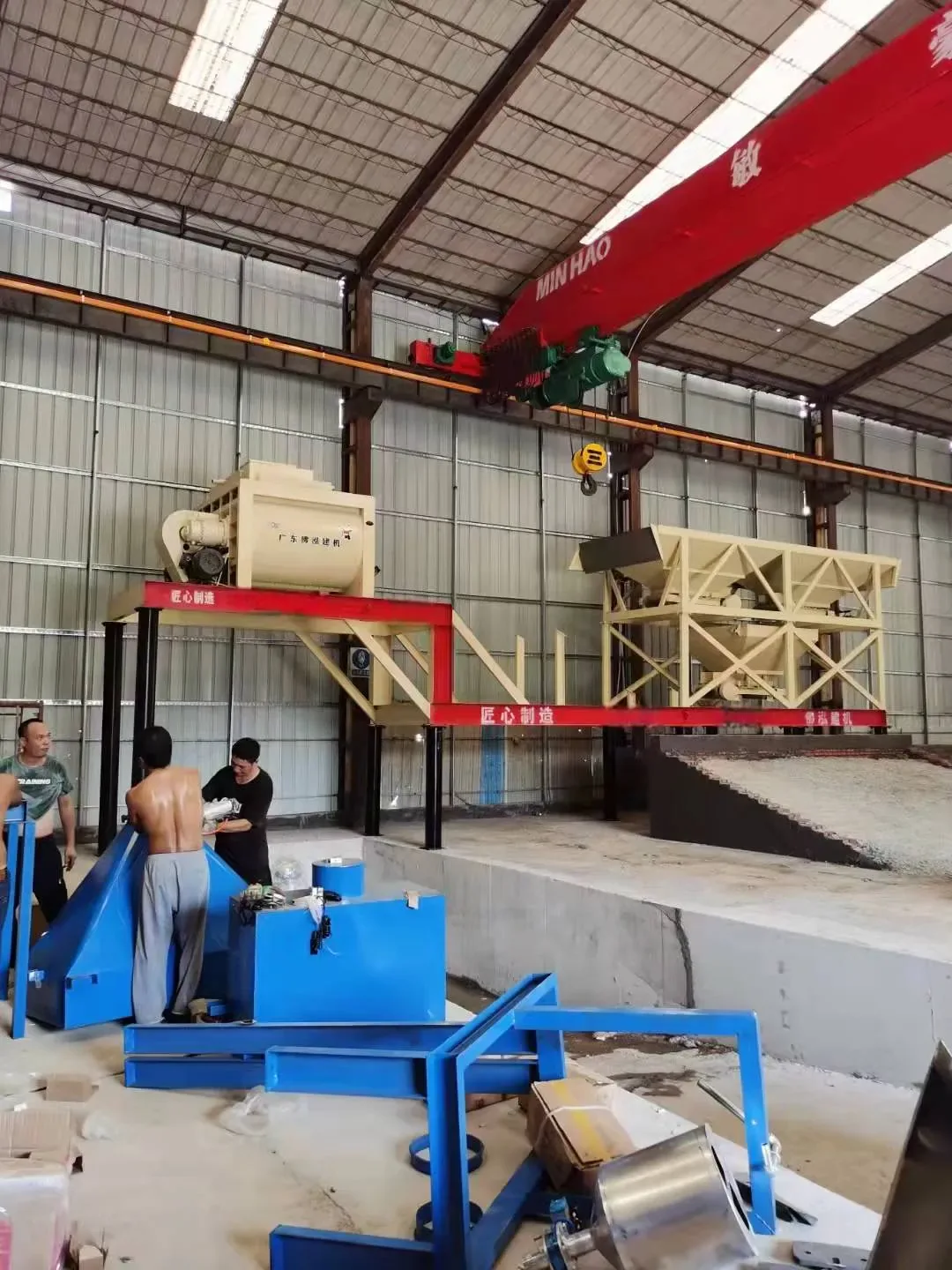

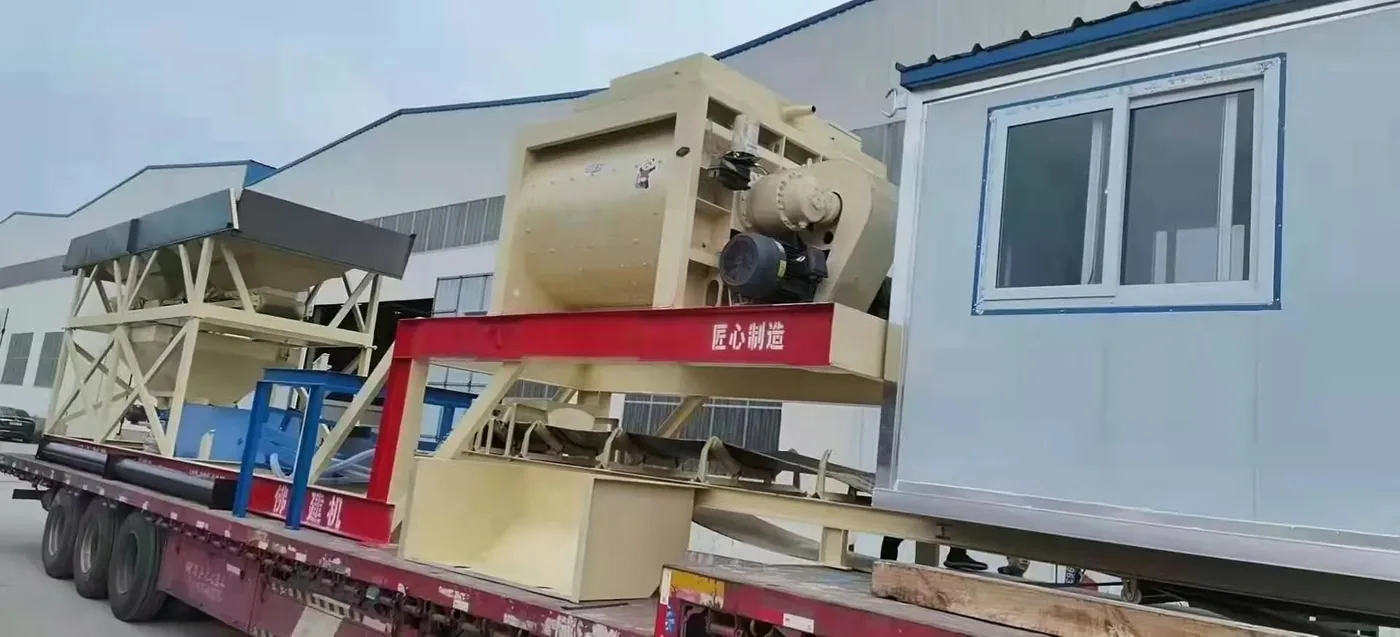

REAL EQUIPMENT / PROJECT PHOTOS
Explore equipment layouts, components and installation details. Request the specifications and supply list for the configuration you need.
PLANT CONFIGURATION

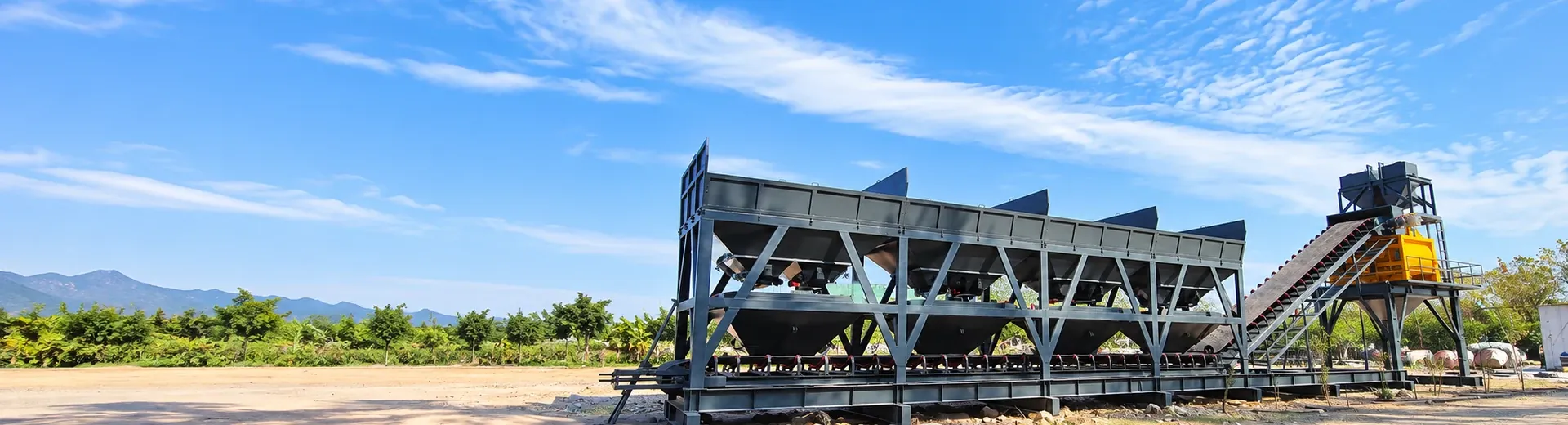

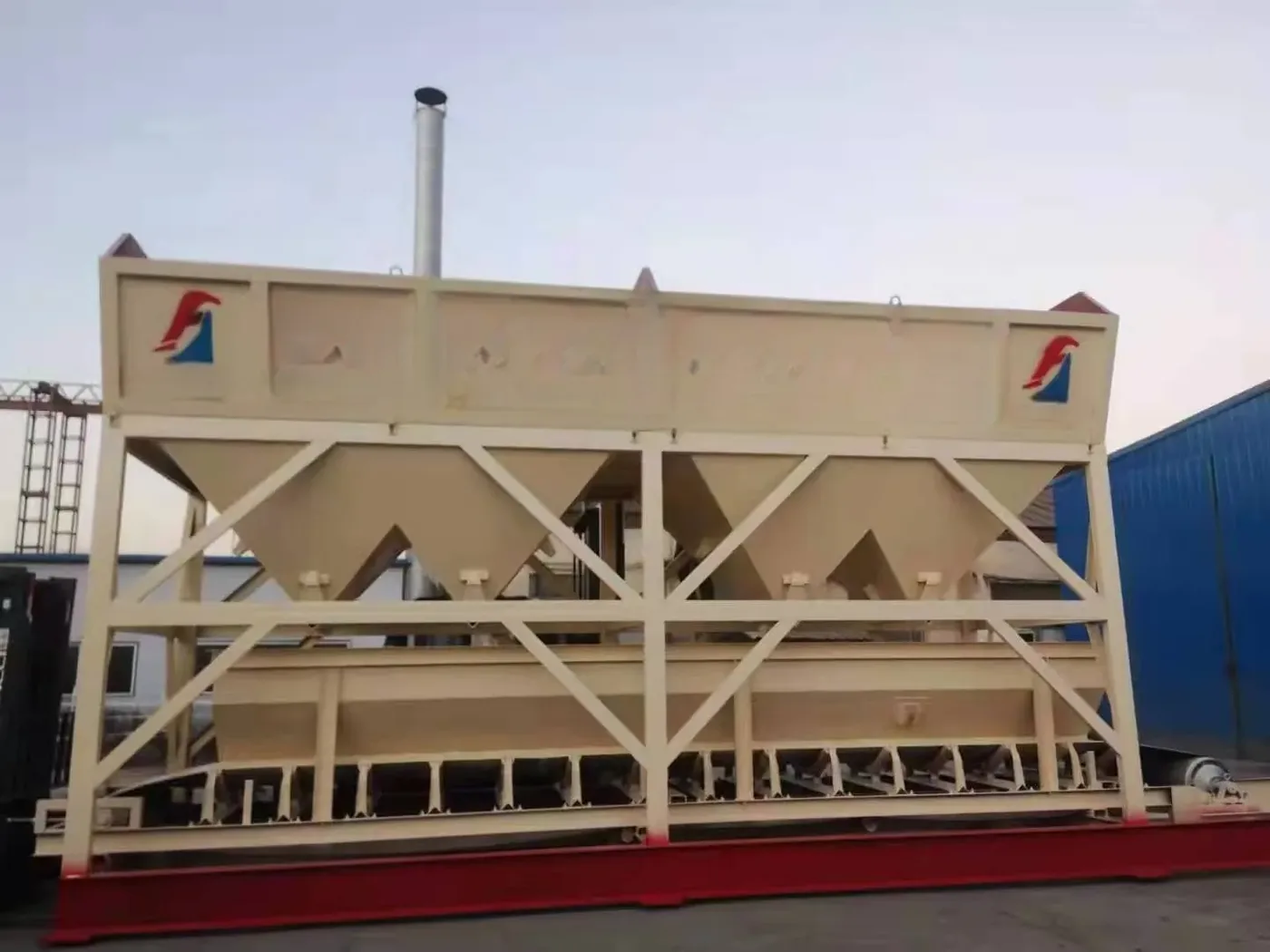

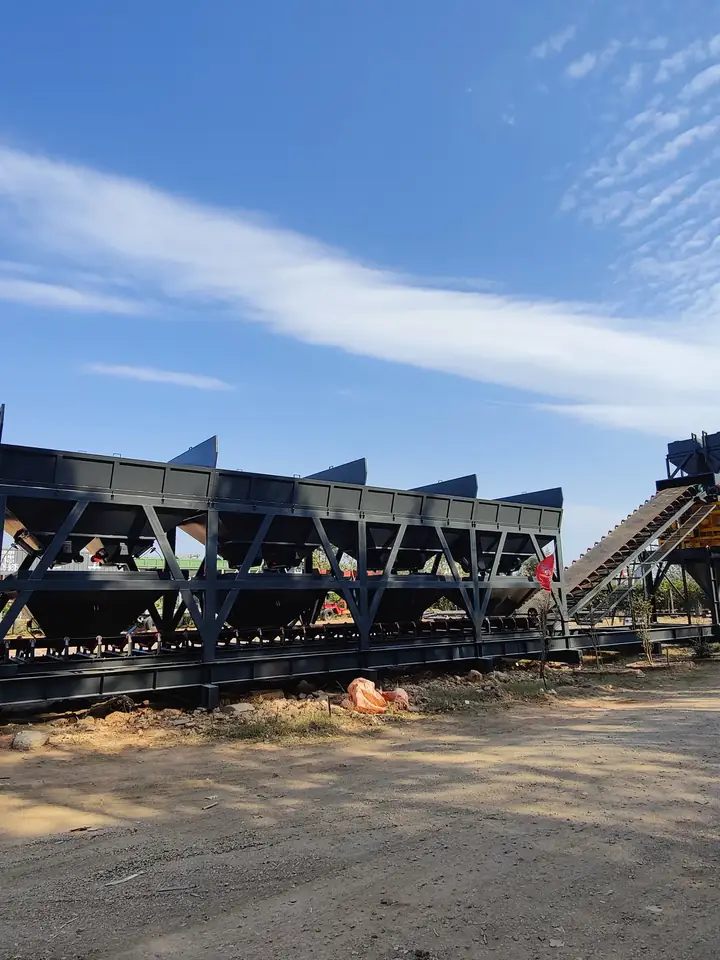

Aggregate batching equipment is connected to the main mixing building via a feeding conveyor. The number of silos, batching methods, and conveyor layout are determined according to aggregate type, site, and production requirements.

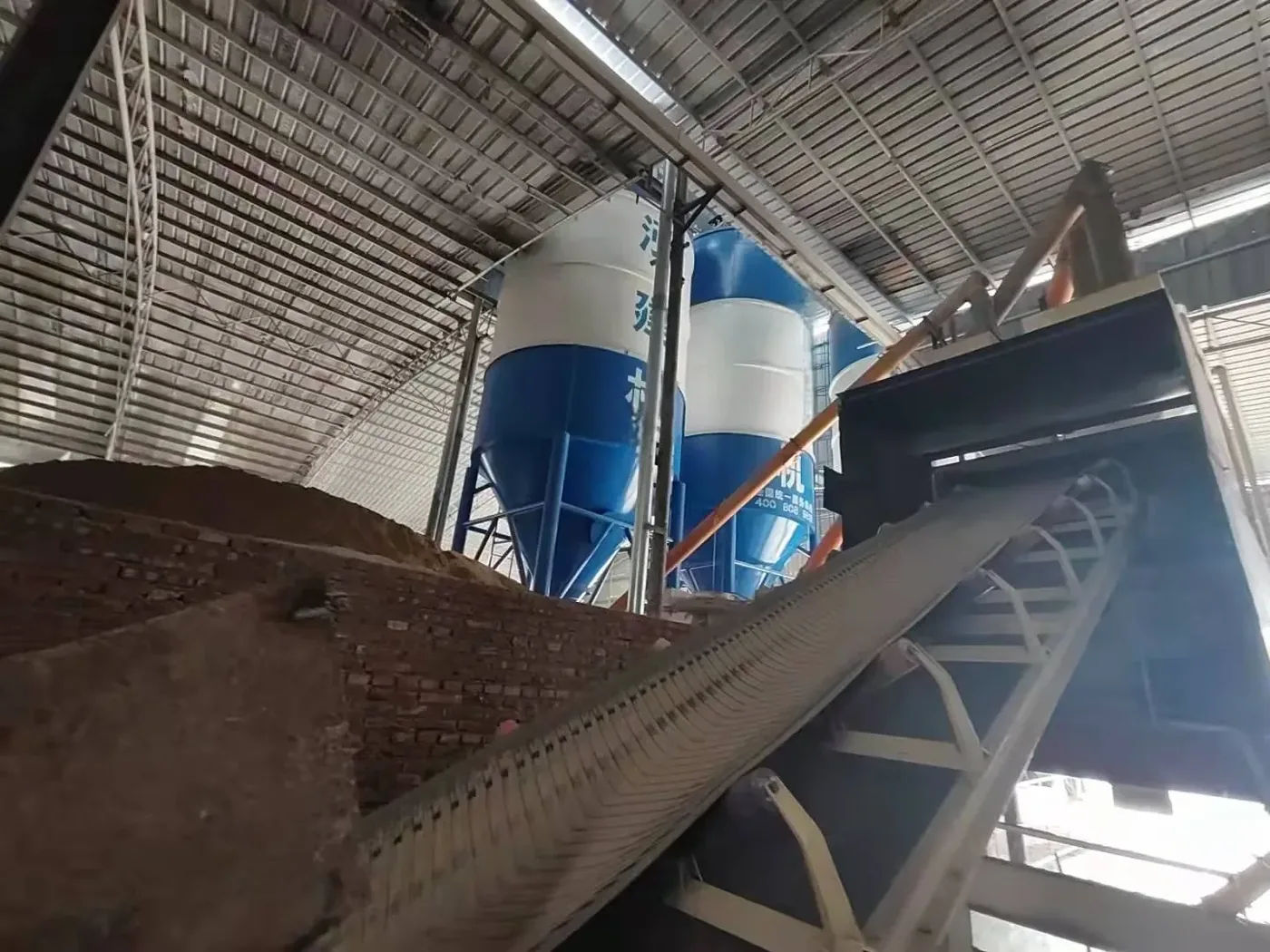

Cement and other powder storage silos, screw conveyors can be configured. Silo type, quantity, capacity, and corresponding accessories are listed in the supply list.
According to the recipe, configure aggregate, powder, water, and additives metering and feeding equipment. Range, interfaces, and control requirements are checked during the quotation stage.
Nominal discharge 2000 L / batch, mixing power 2 × 37 kW. Together with the feeding, metering, and unloading stages, they form the batch production process.
Refer to discharge height 4.2 m. Verify the clearance space, station support, and site conditions according to the receiving vehicle and installation form; even in foundation-free form, it must meet load-bearing and installation requirements.
Connect batching, conveying, metering, and mixing equipment to complete plant control. Voltage, frequency, operation language, and interfaces with existing equipment need to be confirmed with the project.
PRODUCTION APPLICATIONS
HZS120 can be used to supply materials at ready-mix concrete production and construction sites. When configuring, it should be planned in conjunction with target output, concrete formulations, work shifts, and vehicle receiving schedules, arranging storage, batching, and mixing equipment accordingly.
BEFORE QUOTATION
Provide model and project conditions so that the equipment list corresponds to the actual purchase scope.
Specify the procurement of HZS120, providing the expected hourly output, concrete purpose, recipe and type of aggregates, planned shifts, and the condition of receiving vehicles.
Provide available length and width, access roads, installation height restrictions, and existing site information. After checking module layout, station support, and installation requirements, determine the plan.
Specify the types of aggregates and powders, storage requirements, replenishment methods, and existing silos, batching machine or conveyors. Equipment intended for continued use requires model, dimensions, and connection information.
Provide the project country, destination port or site, voltage and frequency, and specify the required control language. Packaging, transportation, installation and commissioning, training, and spare parts requirements should be confirmed separately as to whether they are included in quotation.
SUPPLY & QUOTATION
Can be purchased according to the supporting procurement of complete plant, or can be purchased according to the confirmed list main mixer and supporting equipment. Send the HZS120 model, target output, destination, and existing equipment information to verify the scope of equipment, optional items, and delivery requirements.
