WBZ STABILIZED SOIL MIXING PLANTS
Oriented toward the production of base materials for highways, municipal roads, and site foundations, we supply the WBZ300 — WBZ800 series, with rated catalog output covering 300—800 t/h. Aggregate batching, powder supply, water addition, mixing, and finished product discharge can be arranged as a complete line according to project requirements.
01 / MODEL RANGE
Compare models according to target feed quantity, raw material particle size and on-site electricity.
| Model | Catalog rated capacity t/h | Maximum aggregate particle size mm | Total Catalog Power kW | Catalog machine weight t |
|---|---|---|---|---|
| WBZ300 | ≥300 | ≤60 | 102 | 39 |
| WBZ400 | ≥400 | ≤60 | 120 | 41 |
| WBZ500 | ≥500 | ≤60 | 140 | 51 |
| WBZ600 | ≥600 | ≤80 | 150 | 60 |
| WBZ700 | ≥700 | ≤80 | 160 | 72 |
| WBZ800 | ≥800 | ≤80 | 170 | 81 |
t/h indicates the material mass per hour, which differs from the m³/h caliber of concrete batching plant. The table shows the catalog configuration, and actual output is affected by raw materials, formulas, moisture content, feeding, and discharging conditions; power, weight, and scope of supply are confirmed according to the final configuration.

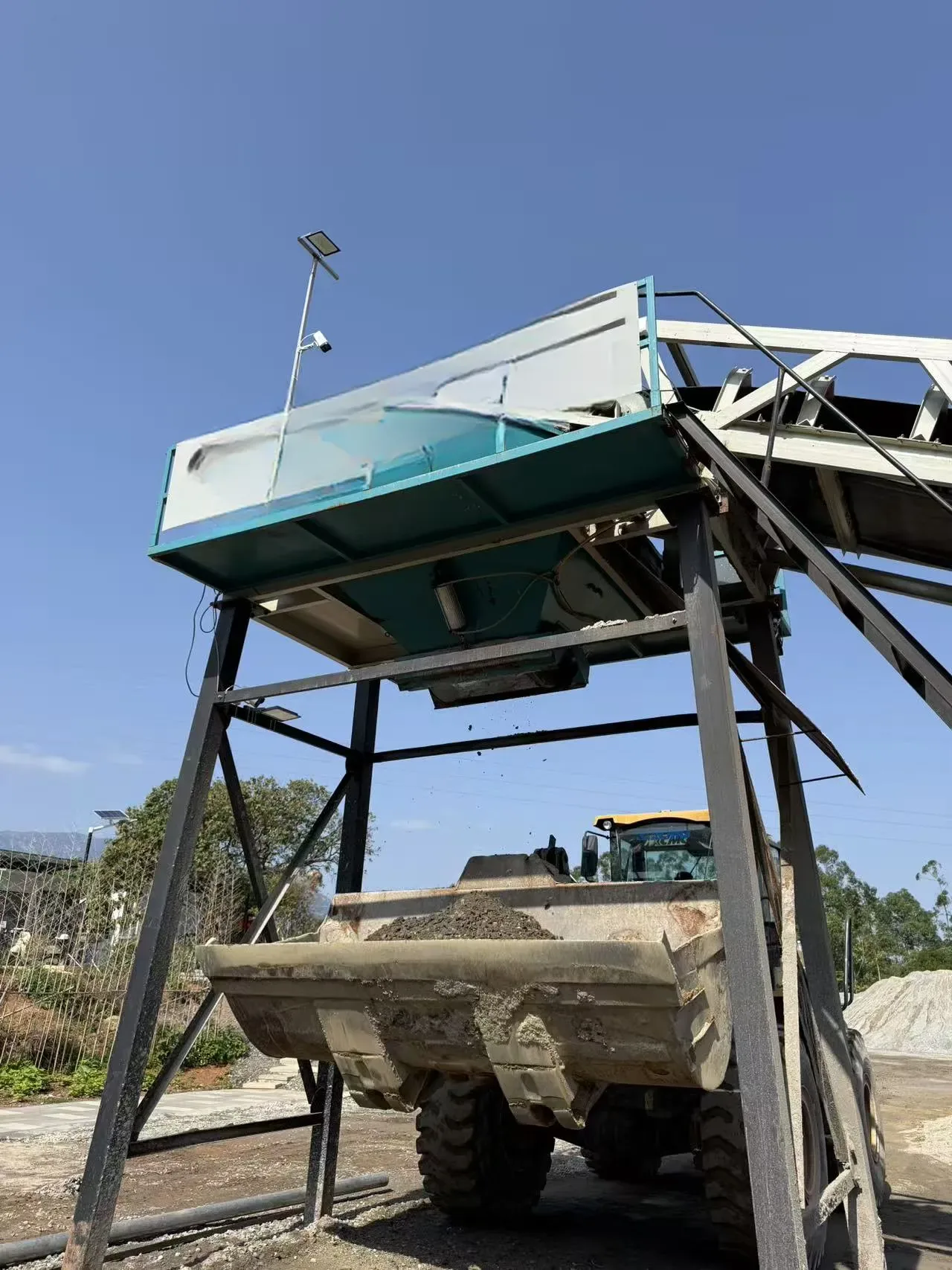

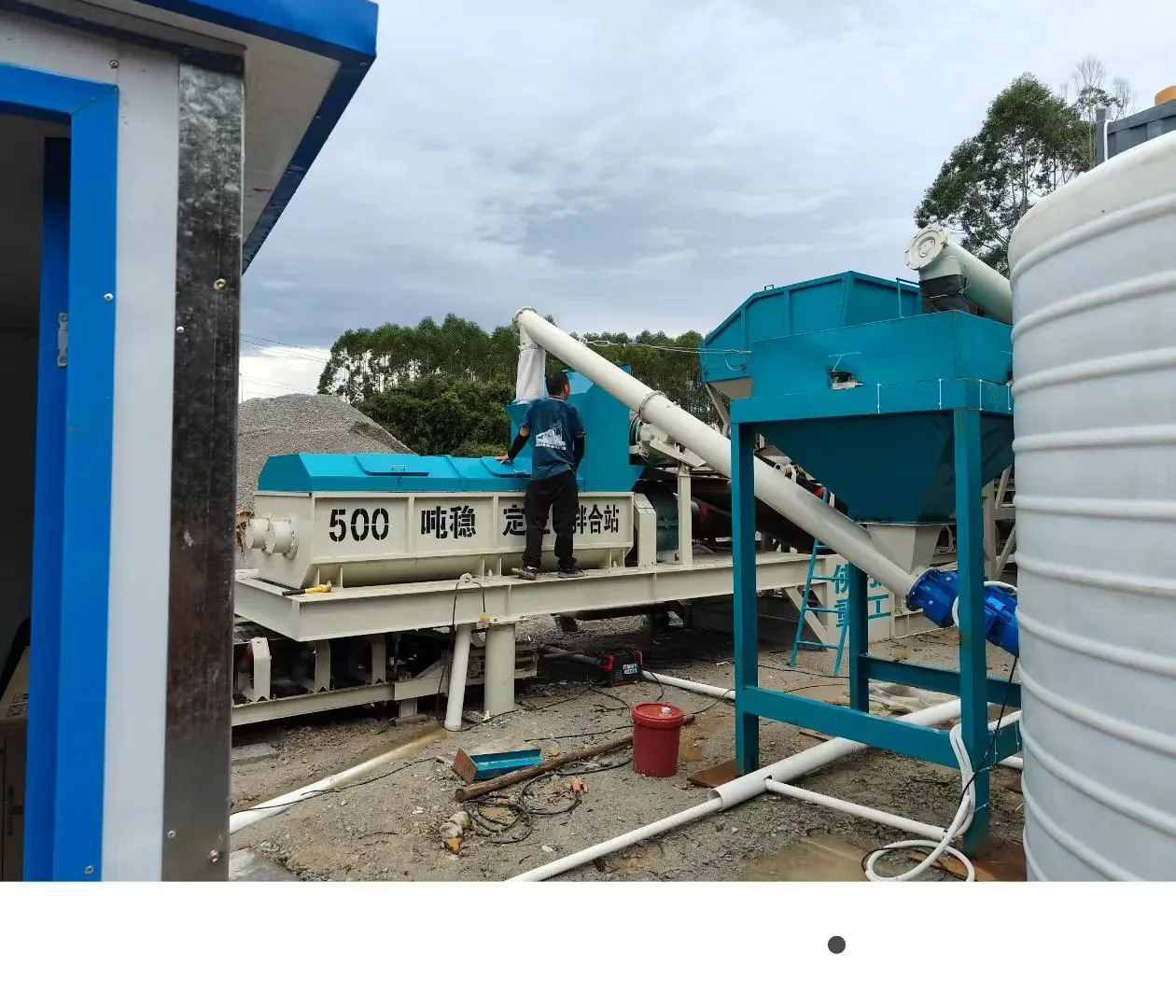

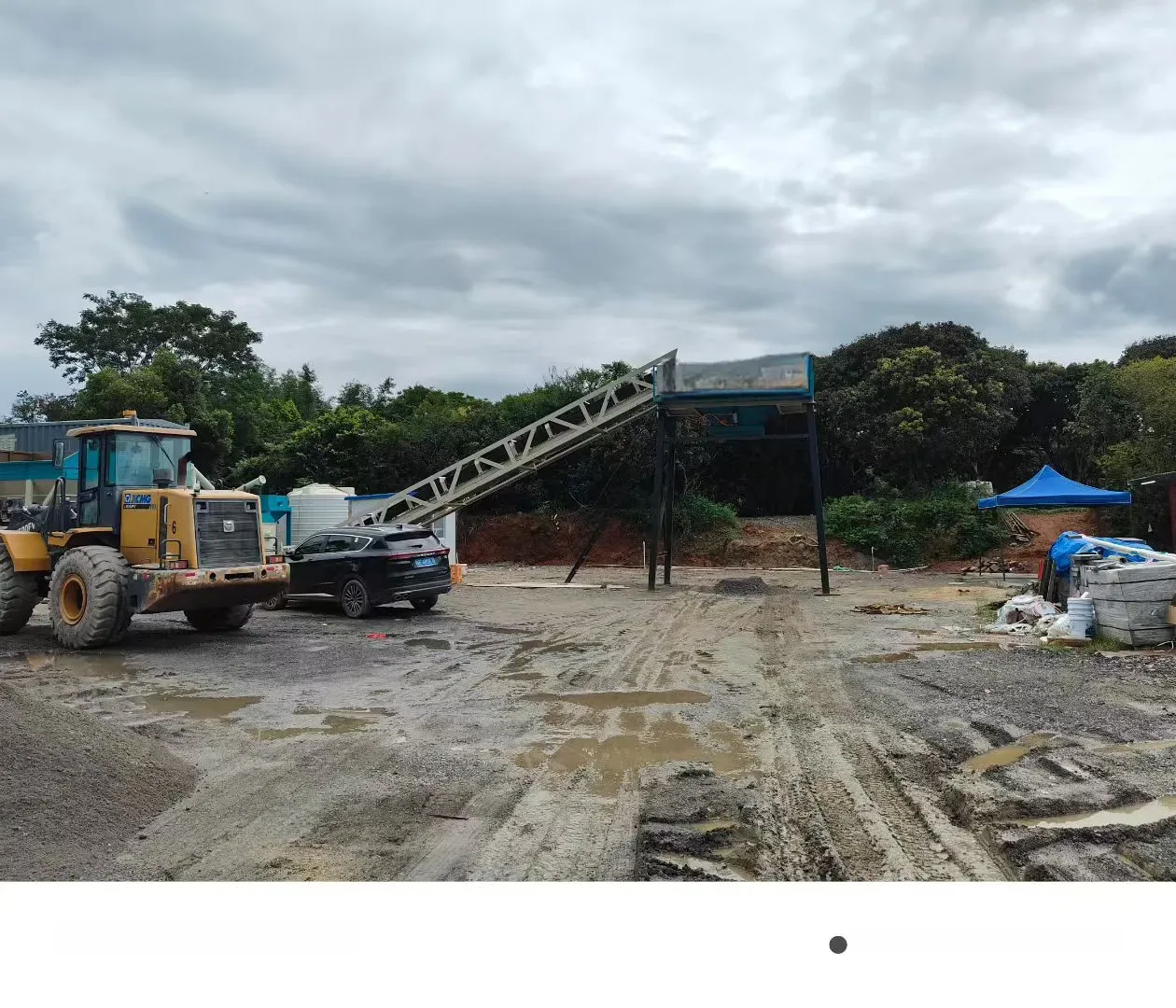

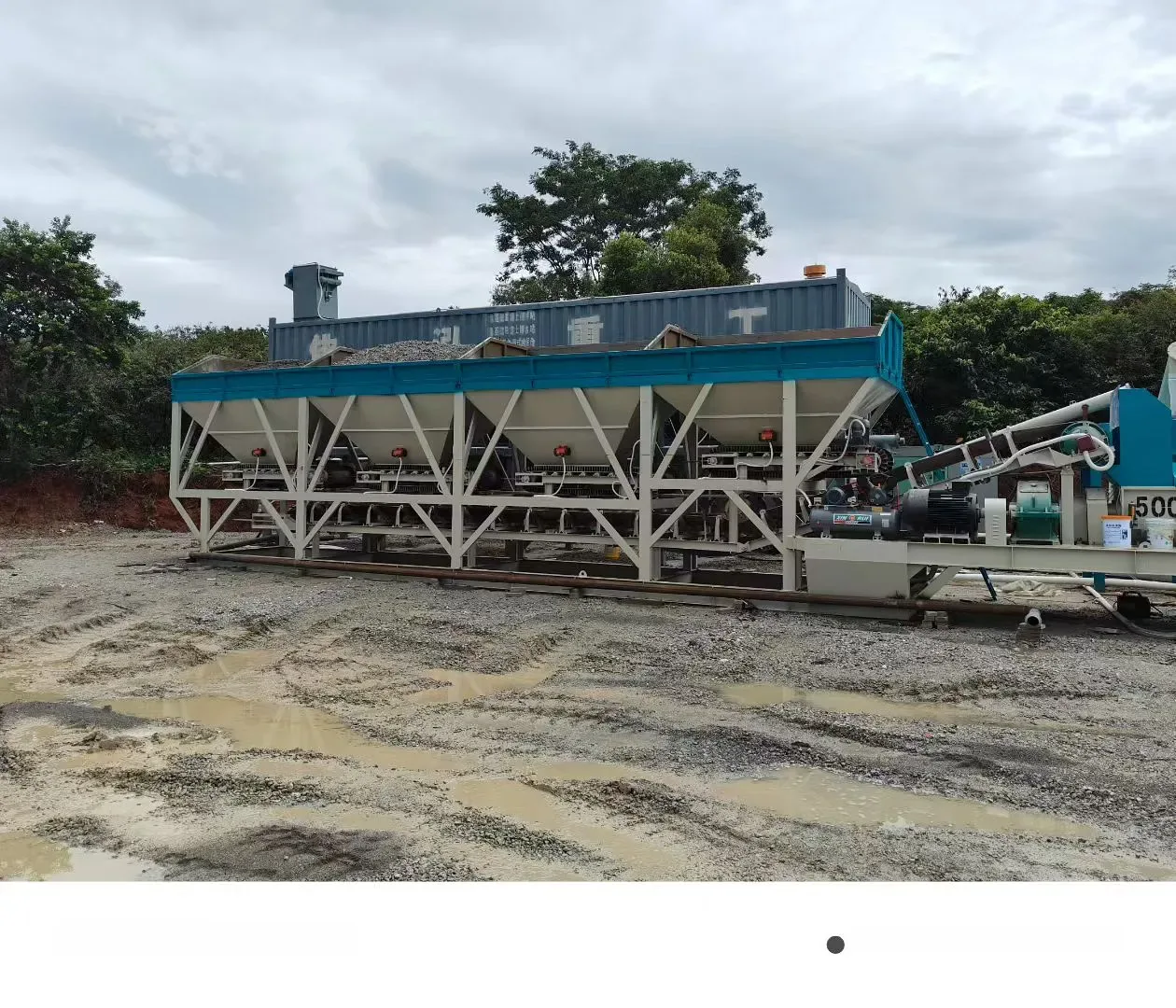

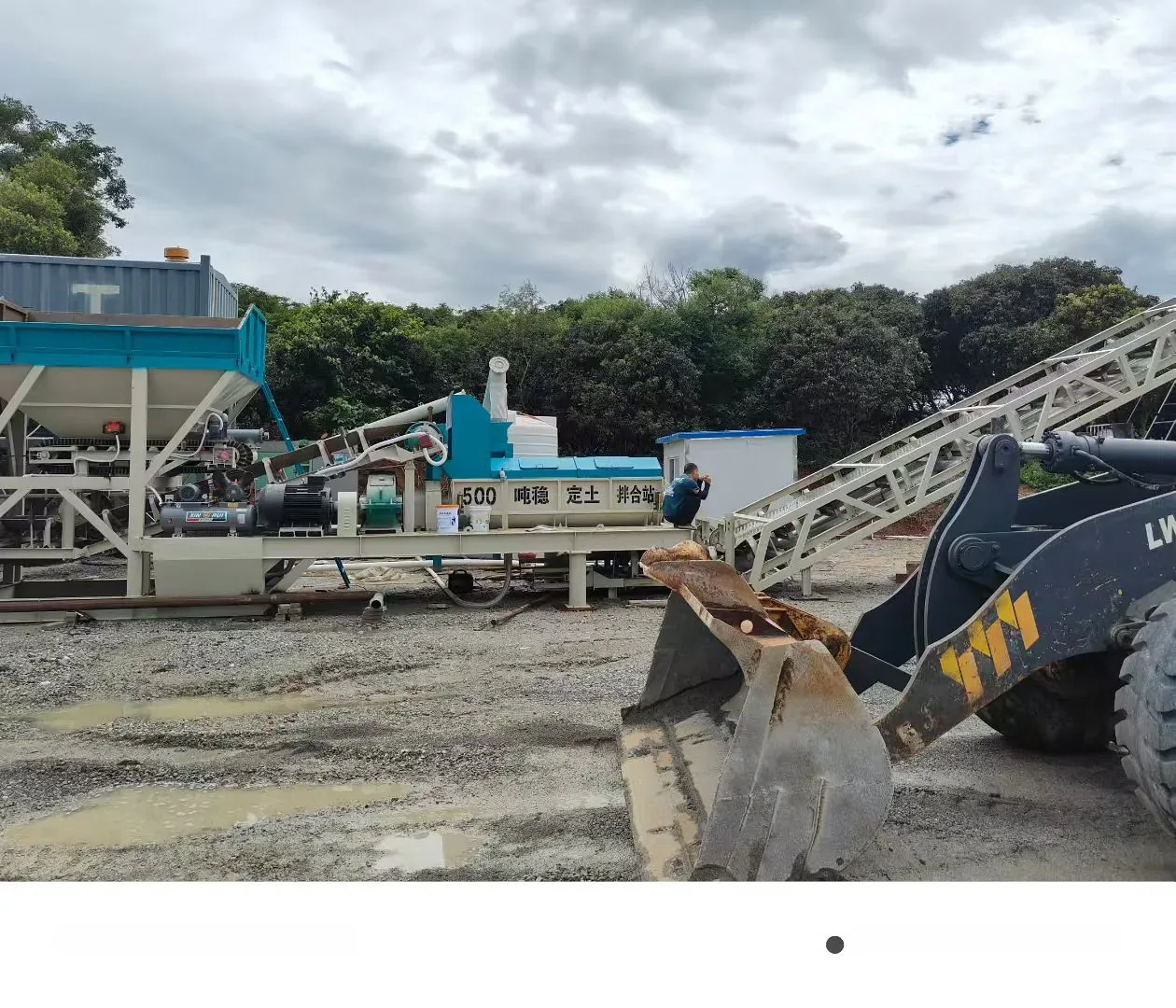

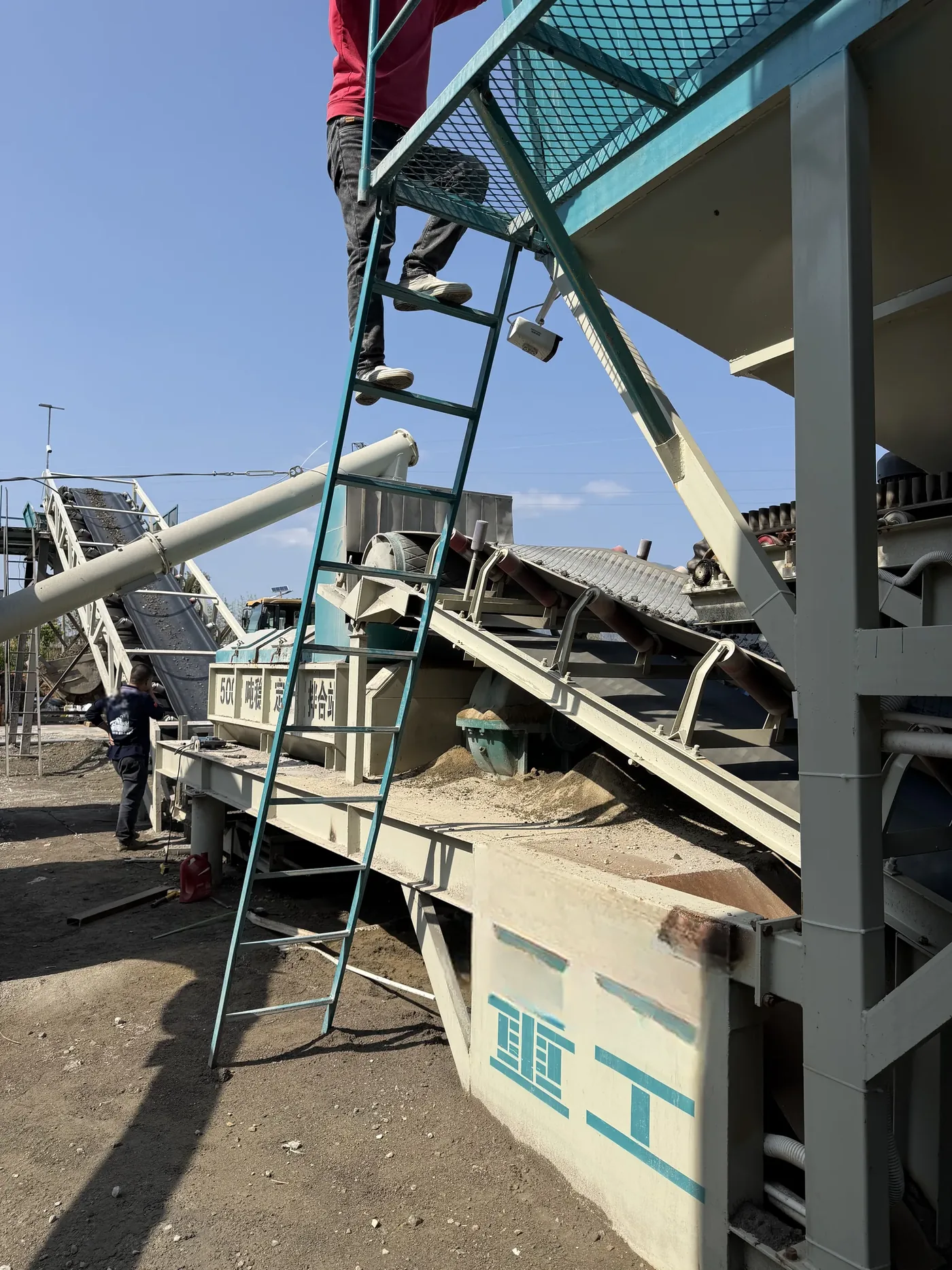

REAL EQUIPMENT / PROJECT PHOTOS
Explore equipment layouts, components and installation details. Request the specifications and supply list for the configuration you need.
02 / ROAD BASE MATERIALS
Production capacity arranged around paving progress and transport vehicles
Used for centralized batching, water addition, and mixing of base materials such as cement-stabilized crushed stone. Organize the aggregate and powder systems according to the designed grading, binder ratio, and water requirements.
Select the model based on daily material usage, paving time, and transport distance. When changing raw materials or using other stable materials, it is necessary to confirm the mix, maximum particle size, and feeding conditions.
03 / COMPLETE PLANT
Purchase the complete line according to the equipment list, or discuss supporting units.
04 / DELIVERY CONFIGURATION

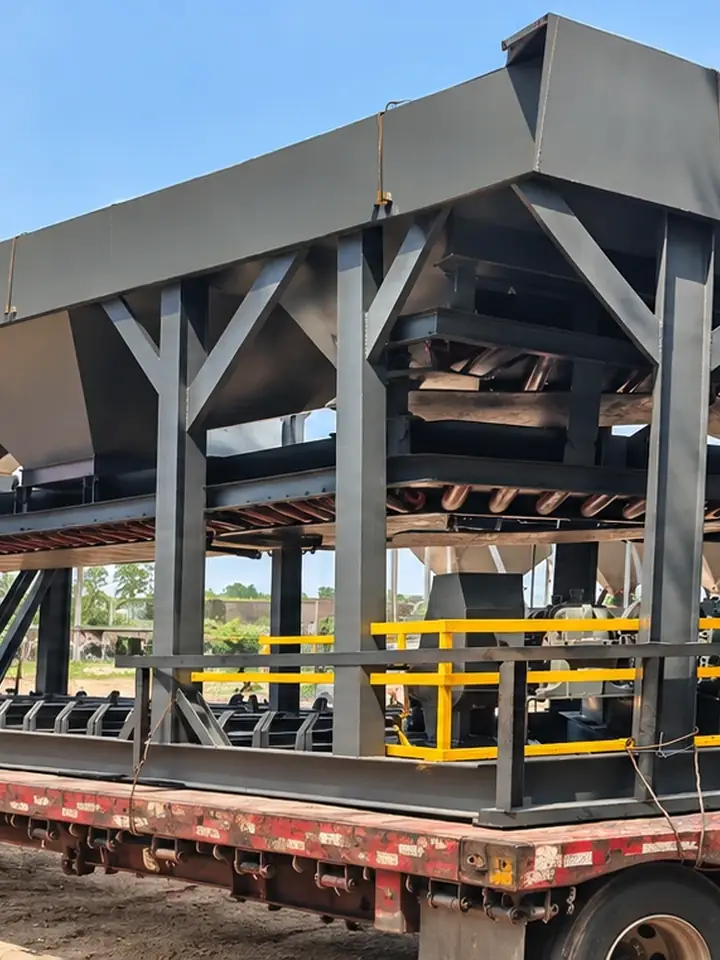

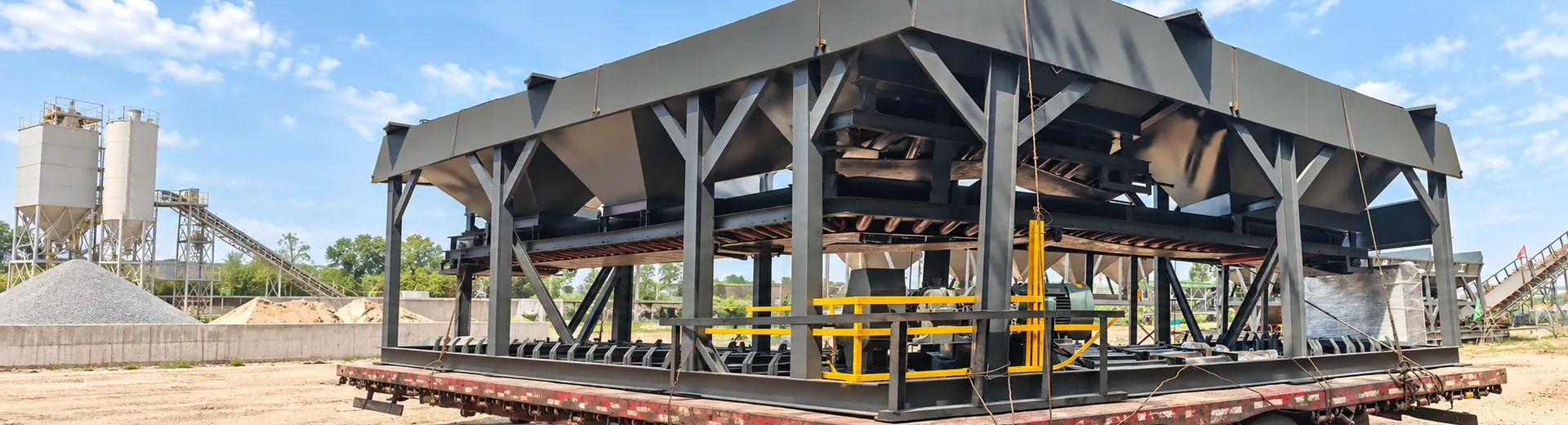

Equipment layout and transport disassembly determined together.
Centralized arrangements for organizing ingredients, mixing, and discharging, as well as equipment combinations, maintenance access, and loader feeding space, are included in enquiry. The shipping method is arranged in combination with the splitting, individual size and weight, and the conditions of the destination port of complete plant.
Arrange the aggregate, powder, mixing, and finished product storage units separately according to the site, and confirm the conveying distance, connection interfaces, cables, and foundation positions. Before delivery, check the transport units, installation sequence, and on-site hoisting conditions.
GET A QUOTATION
Send the required model or target t/h, raw material type, aggregate bin number, quantity, site dimensions, voltage frequency, and destination country/port. Existing equipment list or layout drawings can be supplemented via email.
quotation will specify the batching and mixing equipment, powder silo, conveying, control, and optional items, and will list the packaging transport, installation support, and on-site engineering scope of supply.
