CONCRETE PRODUCTION APPLICATIONS

Concrete Plant Applications

From ready-mix concrete, construction site, prefabrication production, existing station expansion, and roadbase tasks to the corresponding equipment, then directly contact Chinese factory to obtain configuration and quotation.

Submit production task View application comparison

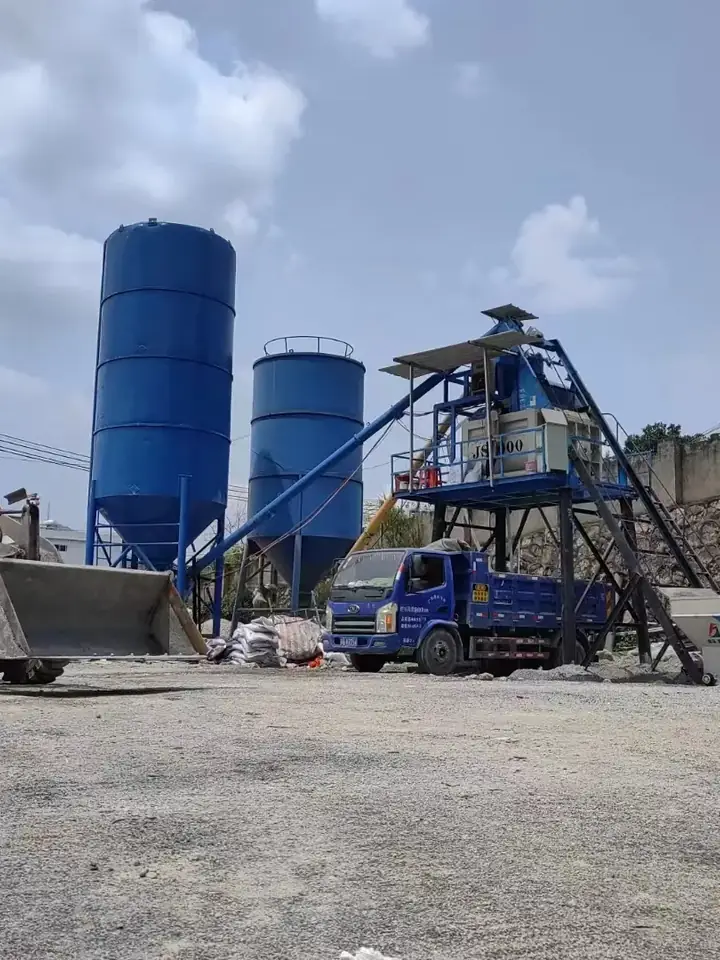

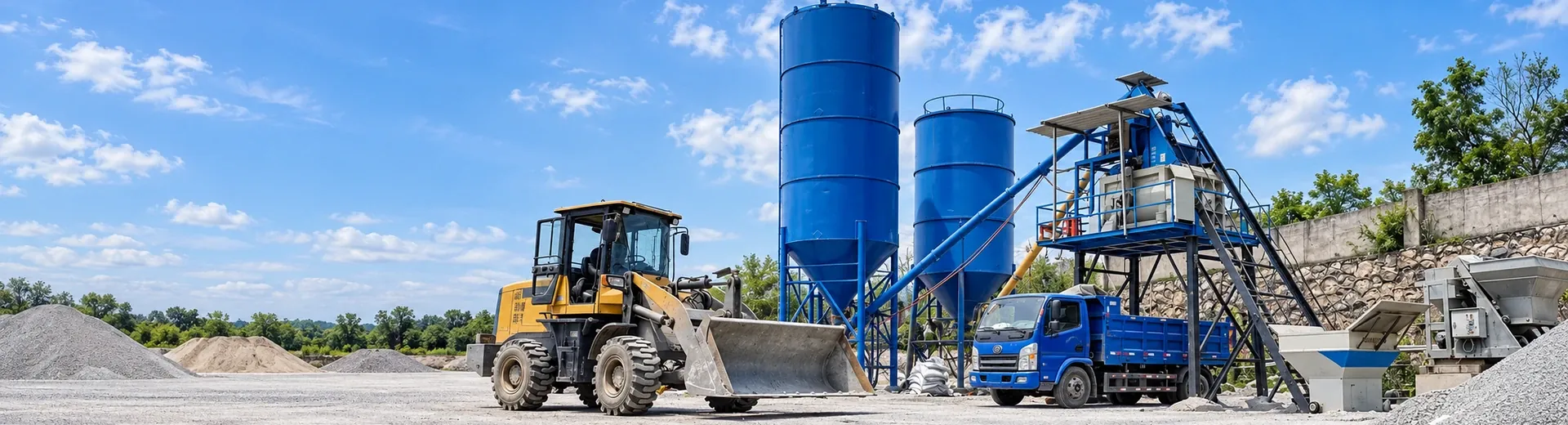

concrete mixing equipment on-site layout and installation status footage — **Photos of on-site layout and installation status of concrete mixing equipment**Concrete supply · large-scale projects · expansion supportREAL EQUIPMENT

Commercial Productionready-mix concrete

Project SupplyProject Self-built Station

Batch Productionprecast concrete

Existing Production LineCapacity expansion / Supporting facilities

01 / EQUIPMENT SELECTION

Quick reference between application and equipment

Material and production task corresponding station types, main mixer, batching and discharging equipment.

Recommended equipment directions for various applications
Application	Equipment Combination	Configuration Conditions
ready-mix concrete	HZS complete plant + aggregate batching + powder silo and conveying	Peak usage, formula, material replenishment, and mixer truck cycle
Project Self-built Station	Modular / Foundation-free series + on-site material storage and feeding	Site, pouring plan, foundation and site entry conditions
precast concrete	JS or CLMP main mixer + metering, batching, and unloading connection	Single batch capacity, formula, component stations, and cleaning
Expansion of Existing Station	main mixer, batching and conveying supplementation; or add production line	Existing bottlenecks, equipment interfaces, and utility reserves
Road Base	WBZ stabilized soil production line + aggregate and binder system	Gradation, t/h requirements, water supply, and paving rhythm

REAL EQUIPMENT / PROJECT PHOTOS

Equipment Layouts and Details

Explore equipment layouts, components and installation details. Request the specifications and supply list for the configuration you need.

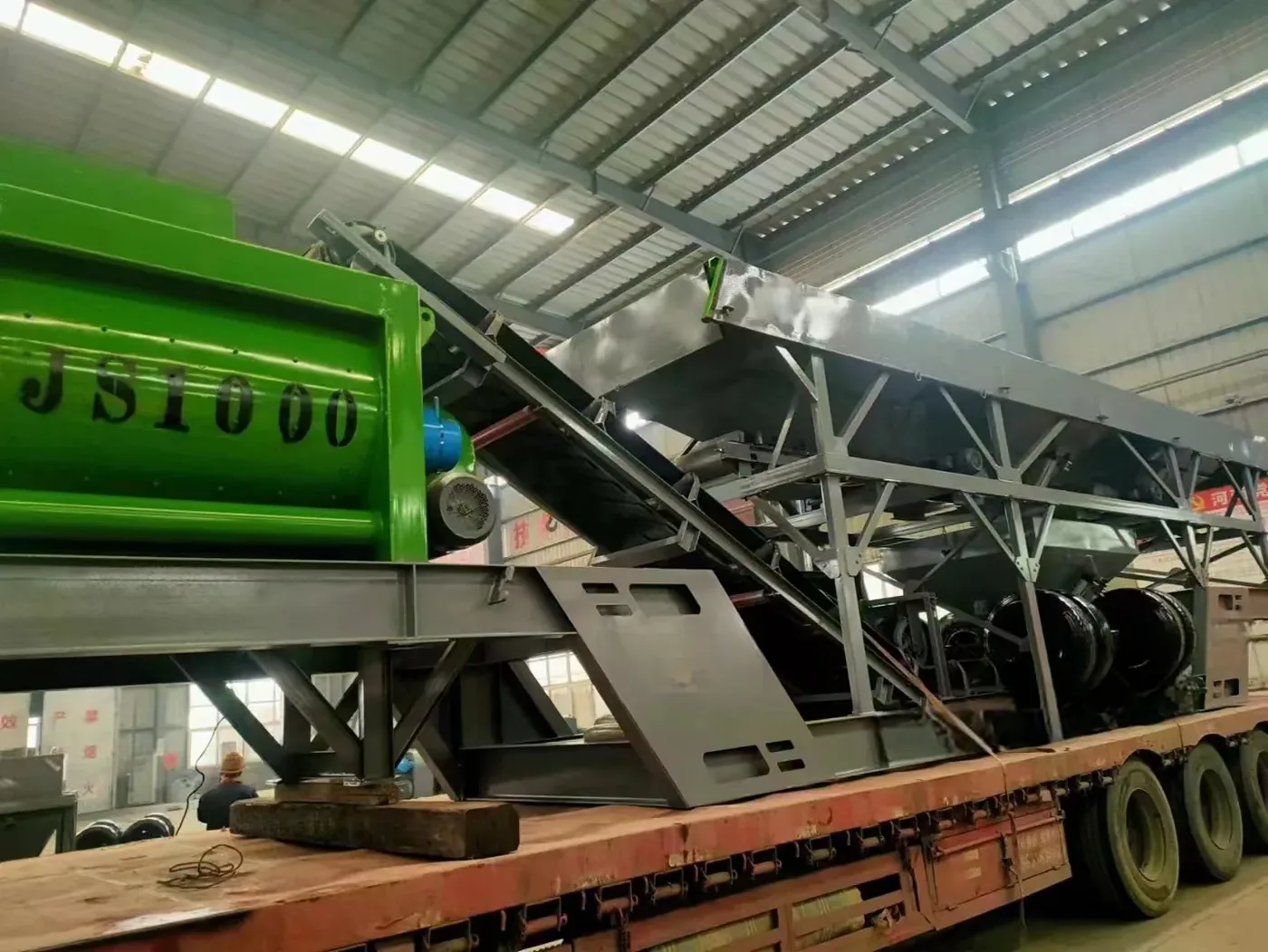

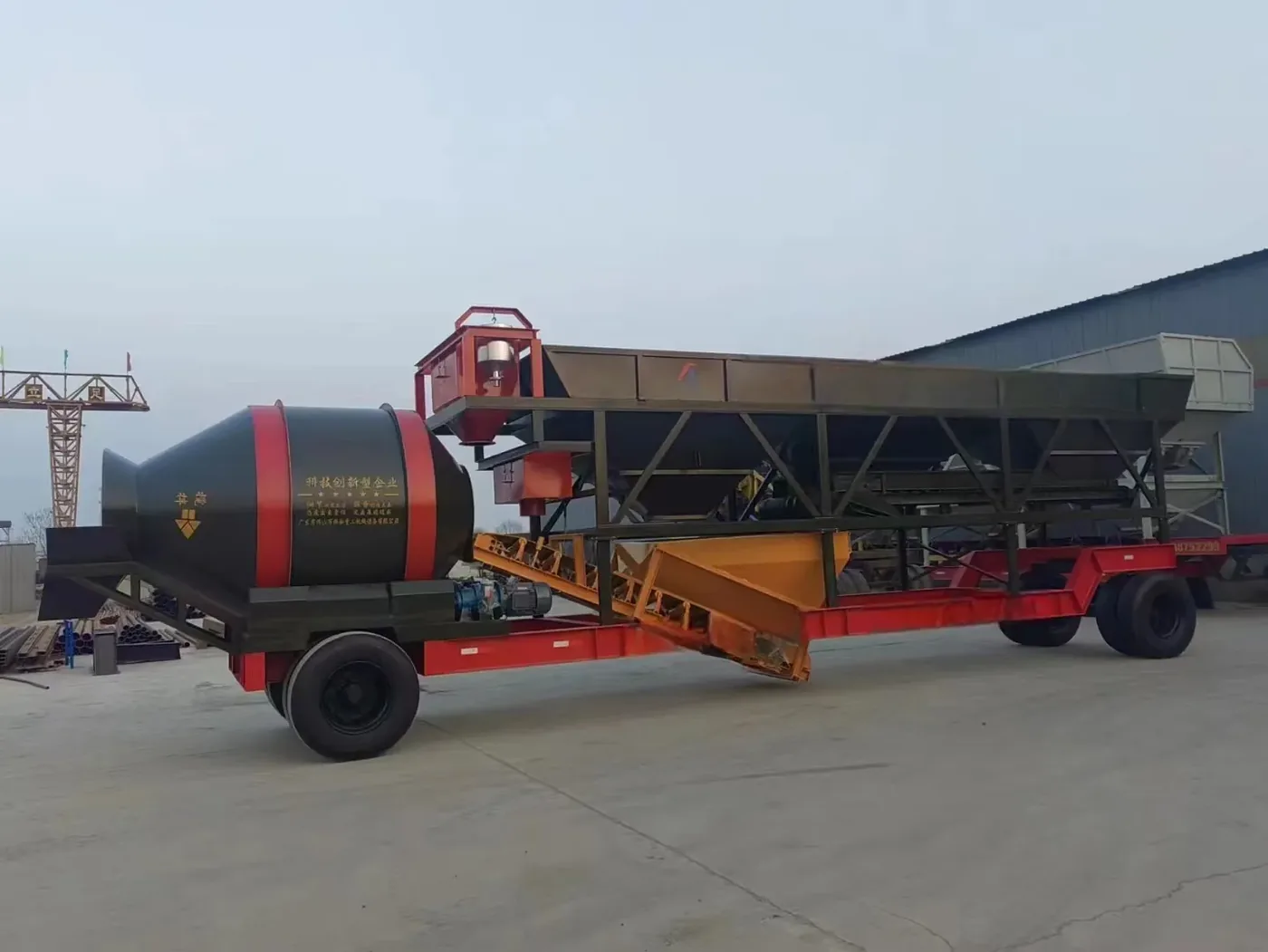

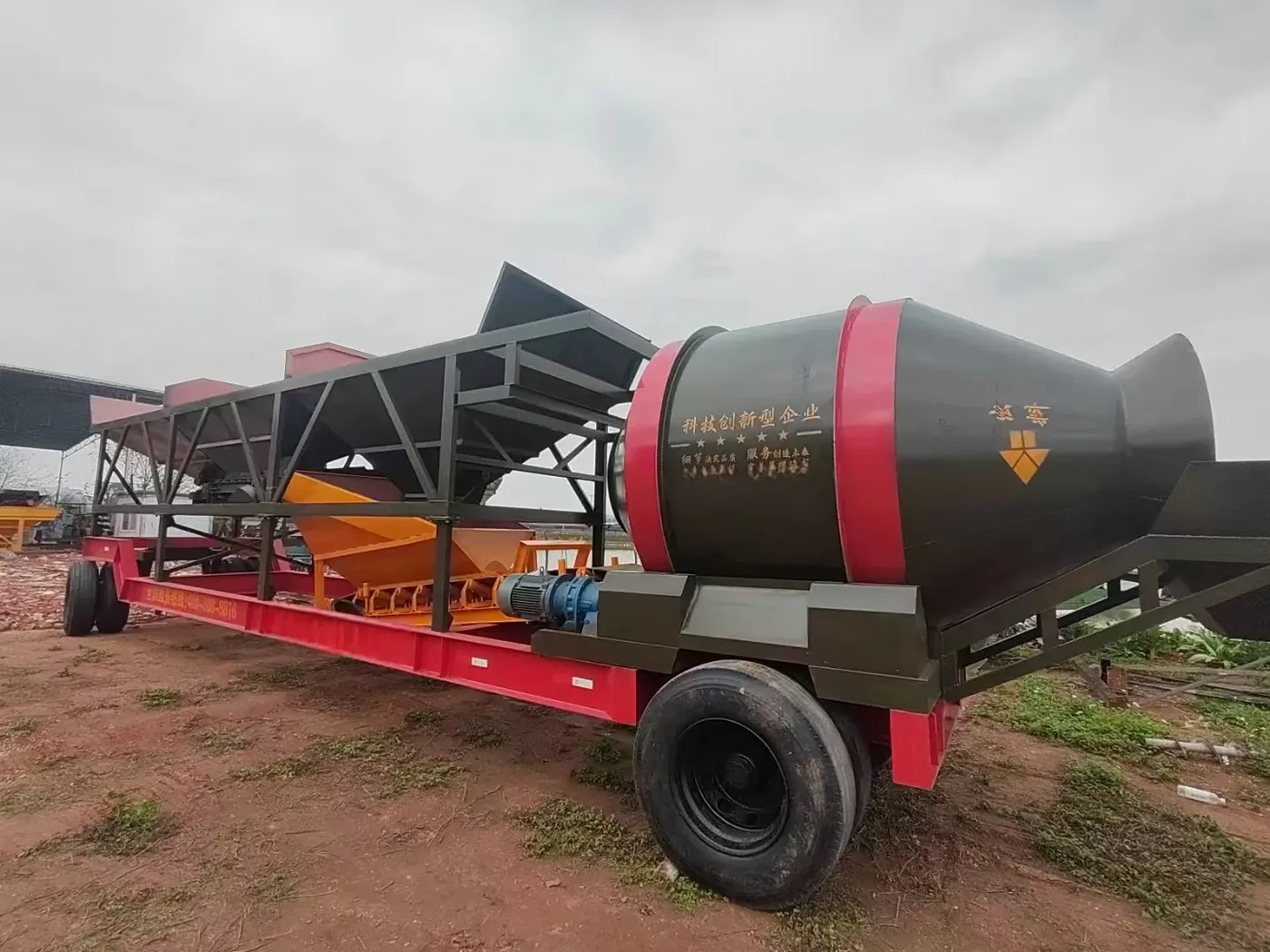

Foundation-free concrete mixing equipment, used to display industry application equipment and structures of concrete equipment. — 01Foundation-free concrete mixing equipment

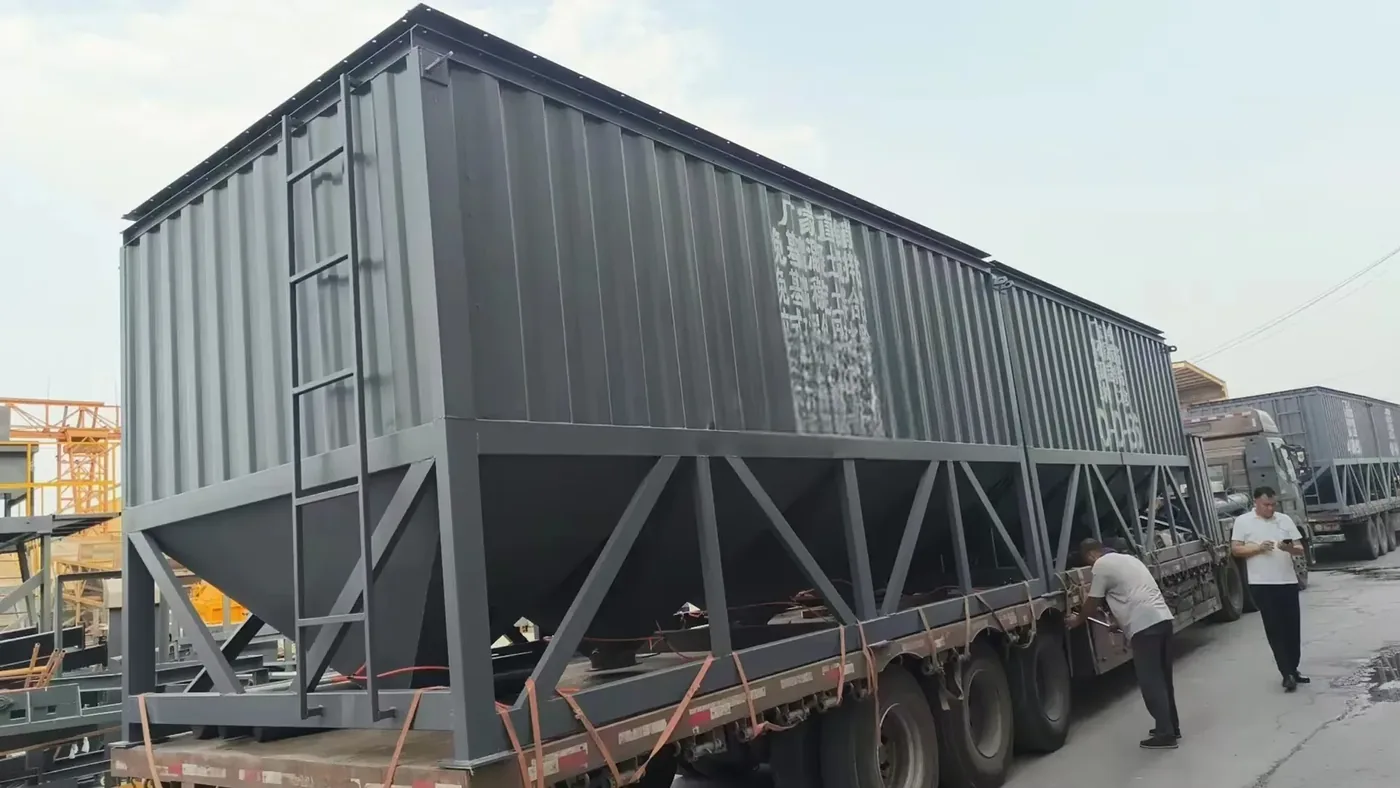

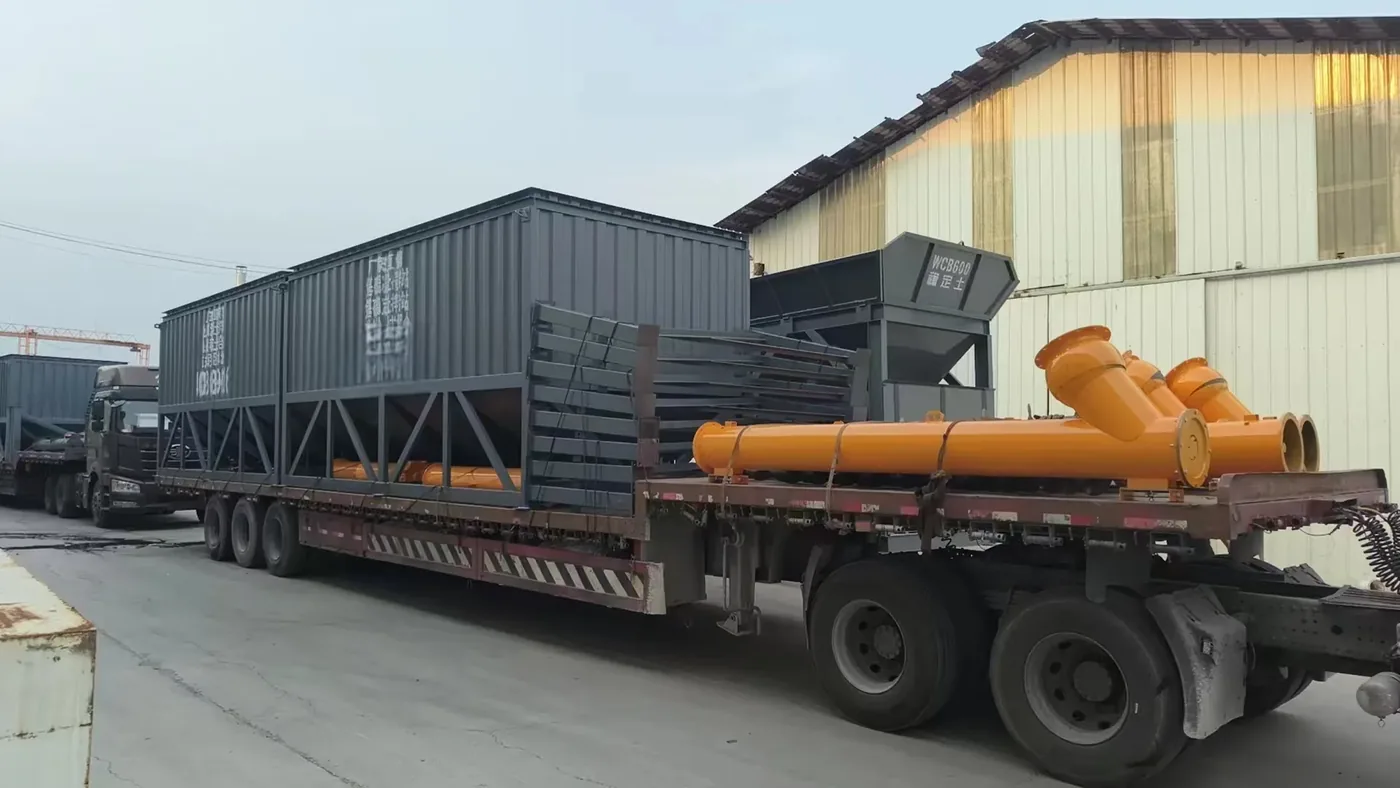

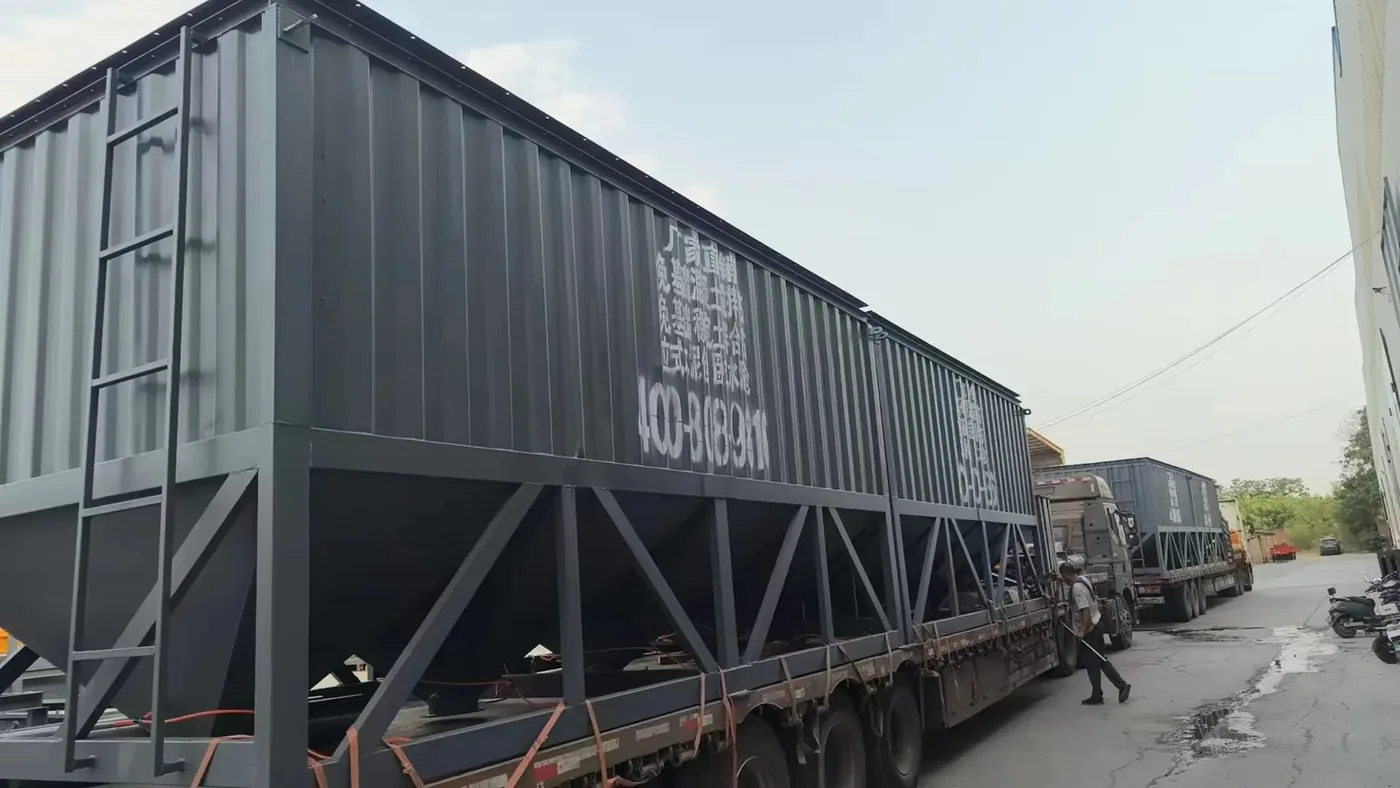

concrete equipment project site, used to display equipment and structures related to concrete equipment industry applications — 02concrete equipment project site

02 / READY-MIX CONCRETE

Ready-Mix Concrete Production

Measure and mix aggregates, powders, water, and additives according to the formula, and connect the batching with the concrete mixer truck and transportation. complete plant configuration should simultaneously cover raw material storage, production cycle, and centralized batching requirements.

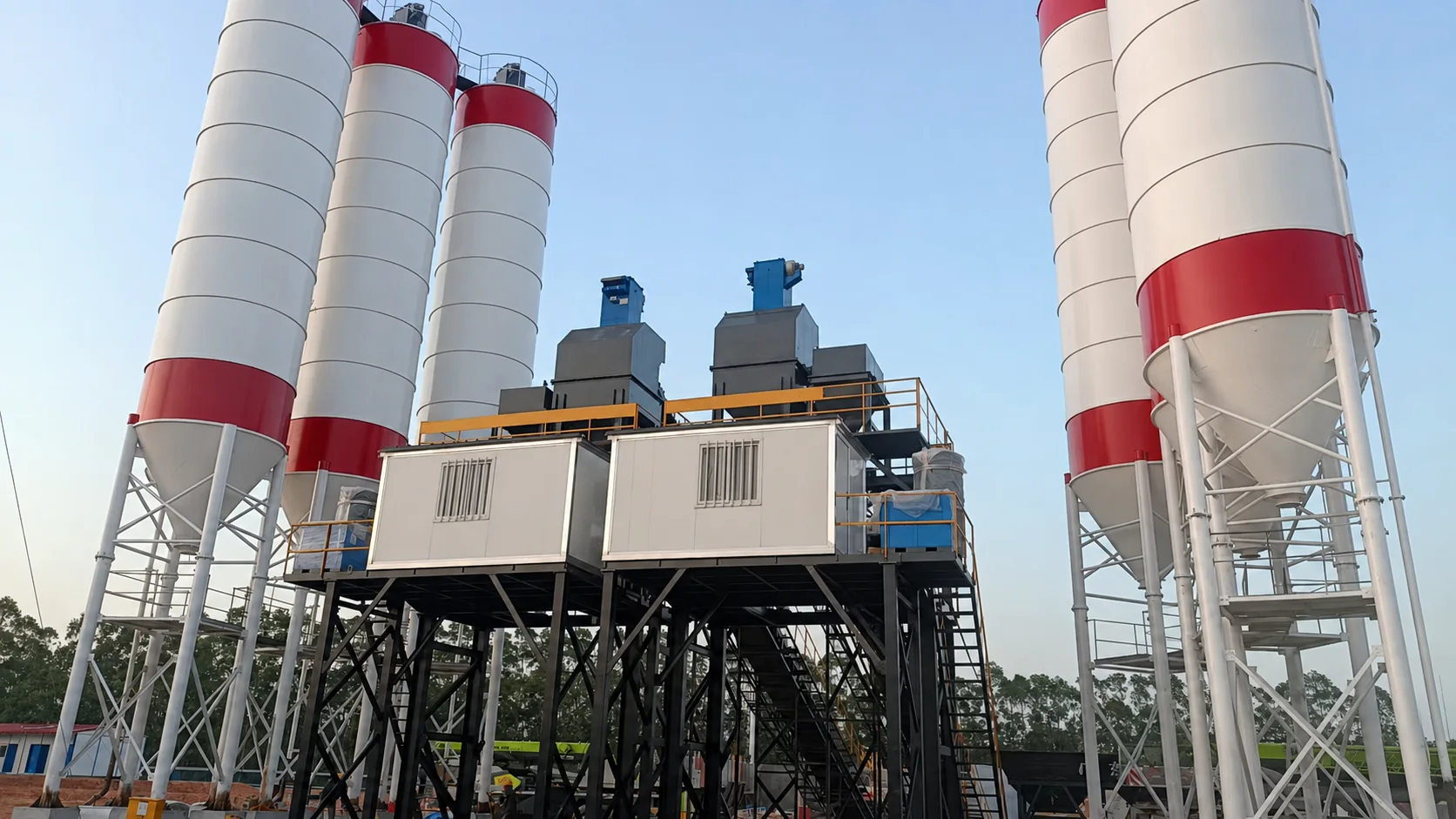

twin-line batching plant main building and powder silo on-site photo — twin-line plant main building and powder silo on-site photos.

Recommended equipment combination

HZS modular or containerized station + JS main mixer + PLD batching machine + powder silo, screw conveying, metering and control system. When two-line production is required, a comparison of twin-line batching plant can be made.

View complete solution

Conditions to be Confirmed

Production and formula: Provides target daily production, peak hourly usage, number of formulas, and types of raw materials.
Raw Materials and Vehicles: Combined with aggregate supply, powder inventory, loader feeding, and mixer turnover matching equipment.
Site Conditions: Confirm available site, voltage frequency, water supply, discharge height, and station area environmental requirements.

Modular batching plant Enclosed Batching Plant Double Line batching plant

Obtain this application equipment quotation

03 / ON-SITE CONCRETE PRODUCTION

On-Site Concrete Production

Producing concrete at construction sites or project supporting locations involves organizing batching, mixing, and discharging according to pouring periods at different construction points. Equipment layout needs to connect with raw material entry and vehicle access.

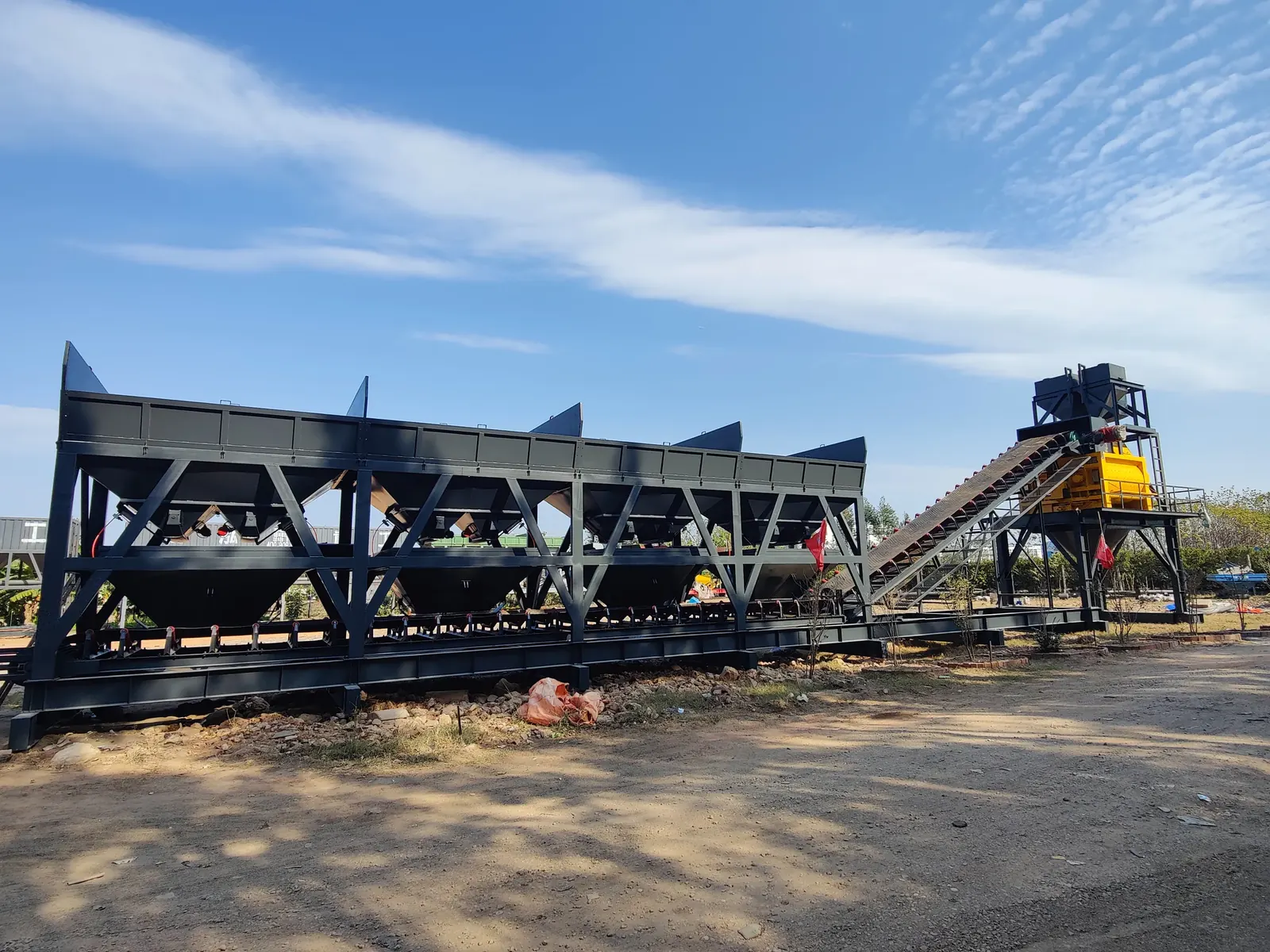

Modular batching plant aggregate batching, belt, and mixing structure — Live footage of modular series batching, conveying, and mixing equipment on site.

Recommended equipment combination

Modular batching plant + aggregate batching, storage, and conveying equipment, configured with powder silo according to site requirements, including metering and control. The foundation-free series relates to specific installation forms and is considered separately from the modular concept.

View complete solution

Conditions to be Confirmed

Construction Pace: Provide the single pour volume, continuous pouring duration, and planned production shifts.
Site and foundation: Check site load-bearing, height difference, drainage, equipment fixing, and foundation requirements.
Arrival and Installation: Indicate road dimensions, unloading and hoisting conditions, on-site power, and water supply positions.

Modular and foundation-free series Site Preparation Checklist

Obtain this application equipment quotation

04 / PRECAST CONCRETE

precast concrete Production

Organize batch production according to component formulas and mold workstations, focusing on the output per batch quantity, unloading positions, recipe repeatability, and cleaning switches between different formulas.

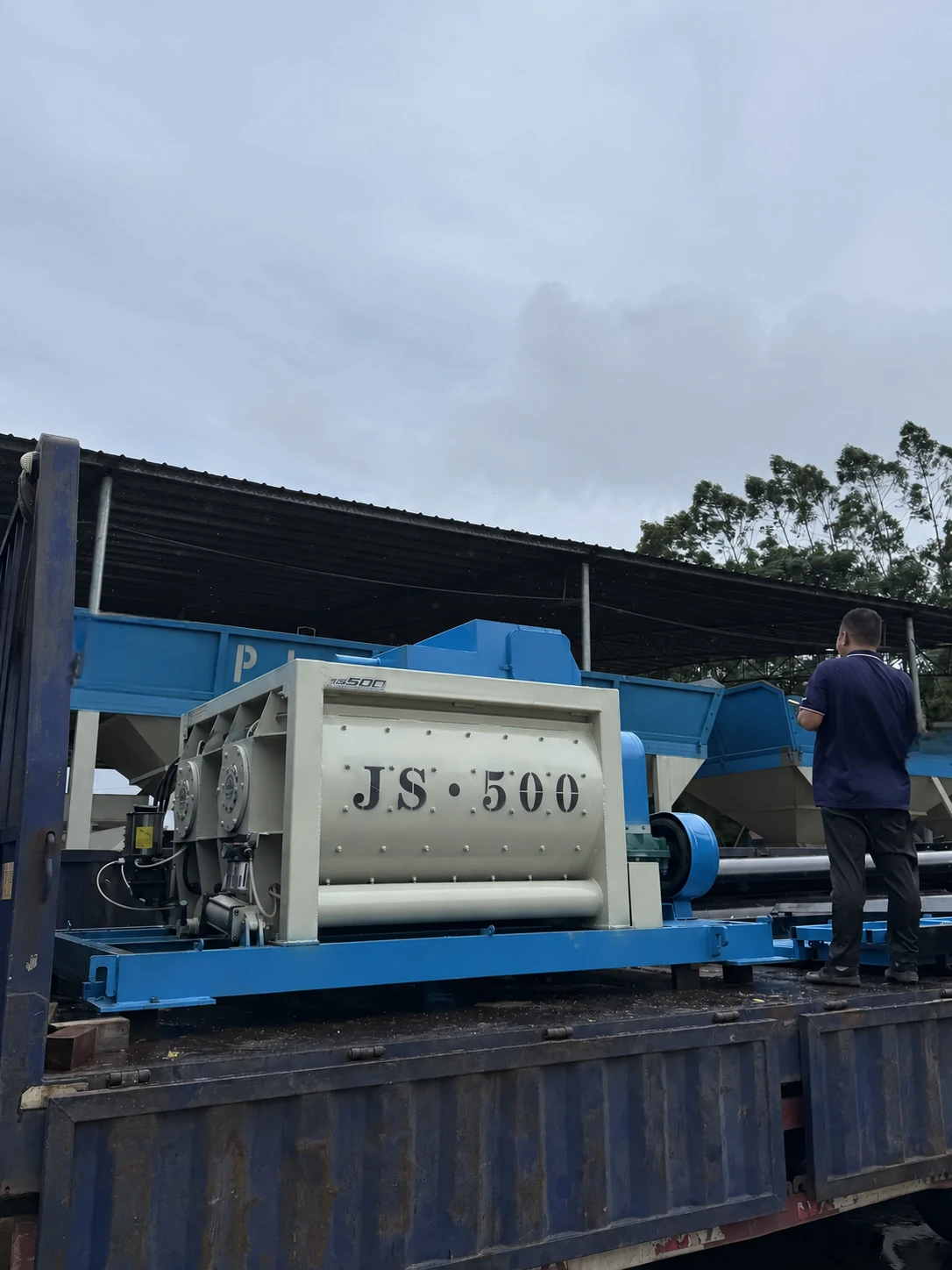

JS500 twin-shaft mixer on the transport vehicle real photos — JS500 mixer Single machine live shot, showing main mixer appearance and transmission parts.

Recommended equipment combination

Can compare JS twin-shaft main mixer with CLMP planetary main mixer, including the measurement of matching aggregates, powders, water, and admixtures, as well as the discharge configuration for the production stage of connecting components. Select main mixer according to the actual formula.

Conditions to be Confirmed

Batches and materials: Specify batch requirements, maximum aggregate size, mix design, and component usage.
Discharge and interfaces: Provide the location, height, work position, and interface dimensions of the molds or receiving devices.
Operation and maintenance: Specify cleaning methods, formula switching, maintenance space, and control linkage requirements.

JS / CLMP Concrete Mixers Aggregate batching equipment

Obtain this application equipment quotation

05 / EXISTING PLANT EXPANSION

Existing station expansion and supporting supplementation

Mixing, aggregate feeding, powder storage, metering and conveying, or waiting for discharge may all limit the current output. The scope of expansion is determined based on existing equipment and operating records.

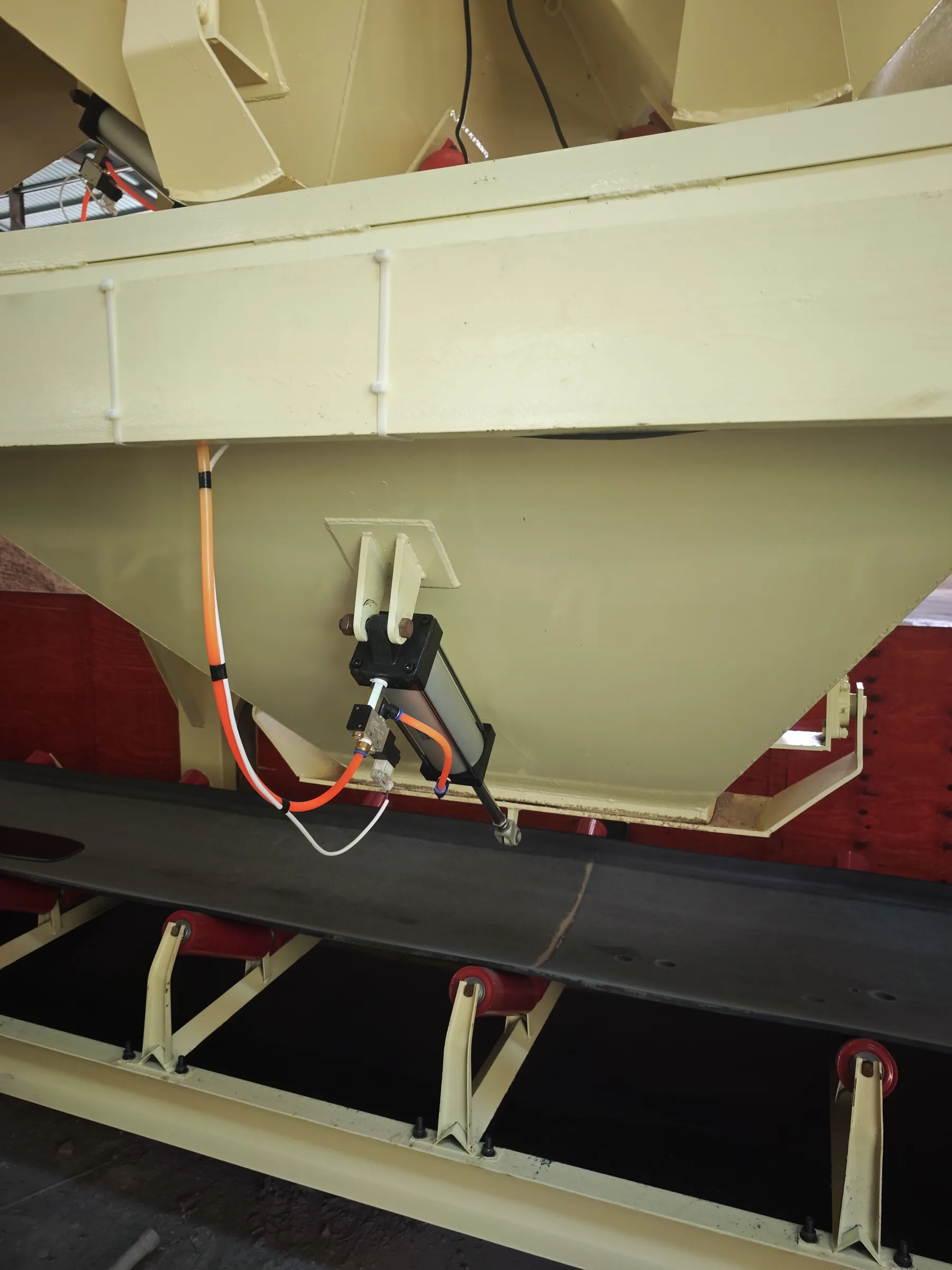

Actual photos of batching hopper pneumatic discharging mechanism and lower conveyor belt — Details of batching hopper discharge mechanism and belt connection, for illustrating supporting interfaces.

Recommended equipment combination

JS / CLMP main mixer, PLD batching machine, powder silo and LSY conveying equipment can be supplemented according to the original interface; projects that add an entire production line line can compare single-line and twin-line configurations.

Conditions to be Confirmed

Existing Equipment: Provide model nameplate, configuration list, site photos, and current actual output records.
Interfaces and allowances: Check layout space, power and water supply, structural interfaces, and upstream and downstream conveying capabilities.
Construction Arrangement: Clarify retained equipment, scope of modification, maintenance window, and installation connection conditions.

main mixer and supporting equipment twin-line complete plant Configuration Capacity selection guide

Obtain this application equipment quotation

06 / ROAD BASE MATERIALS

Road base materials and the entire line of WBZ

Used for batching, adding water, and mixing road base materials such as cement-stabilized crushed stone, and for connecting transportation and on-site paving. Such equipment is described according to the material mass flow t/h, which differs from the m³/h caliber used for concrete plants.

Composition of stabilized soil alignment

Aggregate end Separate storage of materials, feeding, and batching.
Combine material and water Powder storage, conveying, and water addition configuration.
Mixing and Finished Product End Mixing, conveying, storage, and vehicle loading.
Control and Interface Whole line linkage, connection, and on-site utility engineering.

Recommended equipment combination

WBZ300 — WBZ800 stabilized soil mixing plant, equipped with aggregate bin and feeding, powder silo and conveying, water adding, mixing, finished product conveying and storage, and electrical control system. The whole line is configured in an integrated or separate layout.

Conditions to be Confirmed

Raw materials and grading: Provide material gradation, binder ratio, maximum aggregate size, and moisture conditions.
Output and Paving: Describe target t/h, daily material usage, paving period, and transport distance.
Site and supply: Check the number of aggregate bin, raw material supply, voltage frequency, water supply, and vehicle loading routes.

WBZ300—800 model parameters Whole Line enquiry Checklist

Obtain this application equipment quotation

EXPLORE EQUIPMENT & SUPPORT

Enter equipment plan from production tasks

ready-mix concrete, construction sites, prefabrication, road subbase, and expansion of existing stations have different equipment combinations and inputs.

EQUIPMENT CONFIGURATION & QUOTATION

Obtain equipment configuration and quotation

Provide production purpose, model or target output, raw materials, quantity, and destination. Existing layout drawings, equipment lists, or nameplate photos can be supplemented by email.
