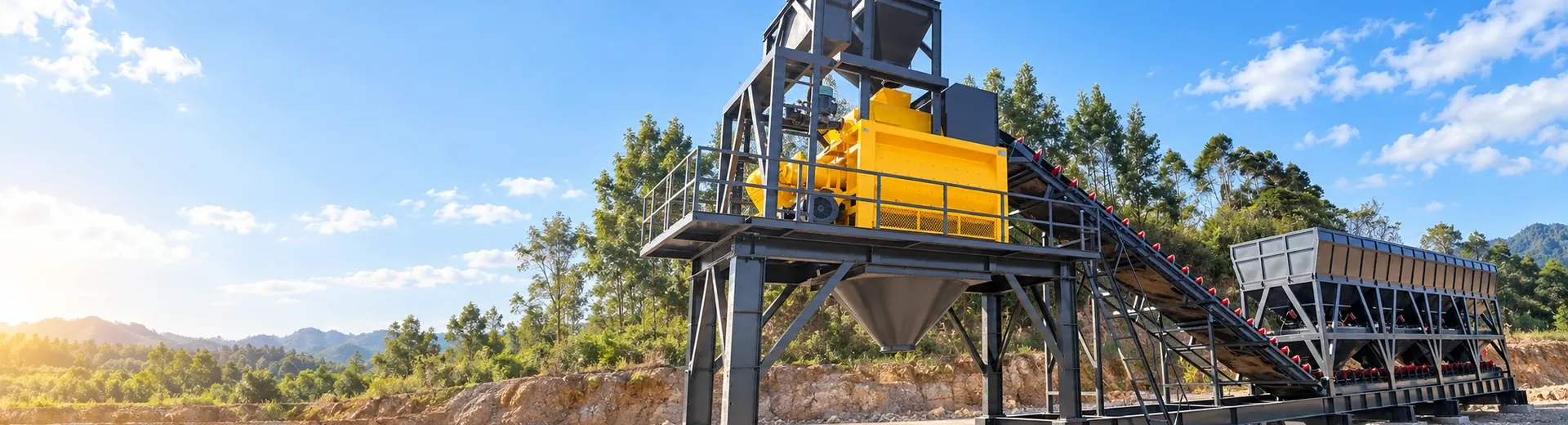

HZS180 / 180 M³/H CLASS
HZS180 uses a complete set of concrete production equipment of JS3000 twin-shaft main mixer, catalog theoretical capacity is 180 m³/h, main mixer each batch output is 3,000 L. The compartmental configuration centrally encloses the metering and mixing main building, with supporting aggregate feeding, powder storage and transportation, water and admixture metering, and control system.
TECHNICAL SPECIFICATIONS
| Technical Item | Reference Parameters | Parameter Description |
|---|---|---|
| complete plant theoretical capacity | 180 m³/h | Theoretical Hourly Output Marked in Catalog |
| main mixer | JS3000 | twin-shaft Mixing Structure |
| main mixer output per batch Quantity | 3,000 L / batch ( 3 m³ / batch) | main mixer Batch discharge volume |
| main mixer mixing power | 2 × 55 kW | Mixing drive power, not the total installed power of complete plant |
| Aggregate Configuration | 4 Sets of Aggregates | The catalog is based on 4 types of aggregate configuration, and silos and metering schemes are to be confirmed separately |
| discharge height | 4.2 m | Verify with the material receiving vehicle and on-site elevation |
parameters are compiled from the HZS180 station type table and JS3000 main mixer table in the product catalog. theoretical capacity, single batch capacity and actual supply volume are accounted for separately; actual output is affected by formula, mixing time, feeding, and vehicle receiving conditions. The final equipment configuration is confirmed in the quotation list and technical documents

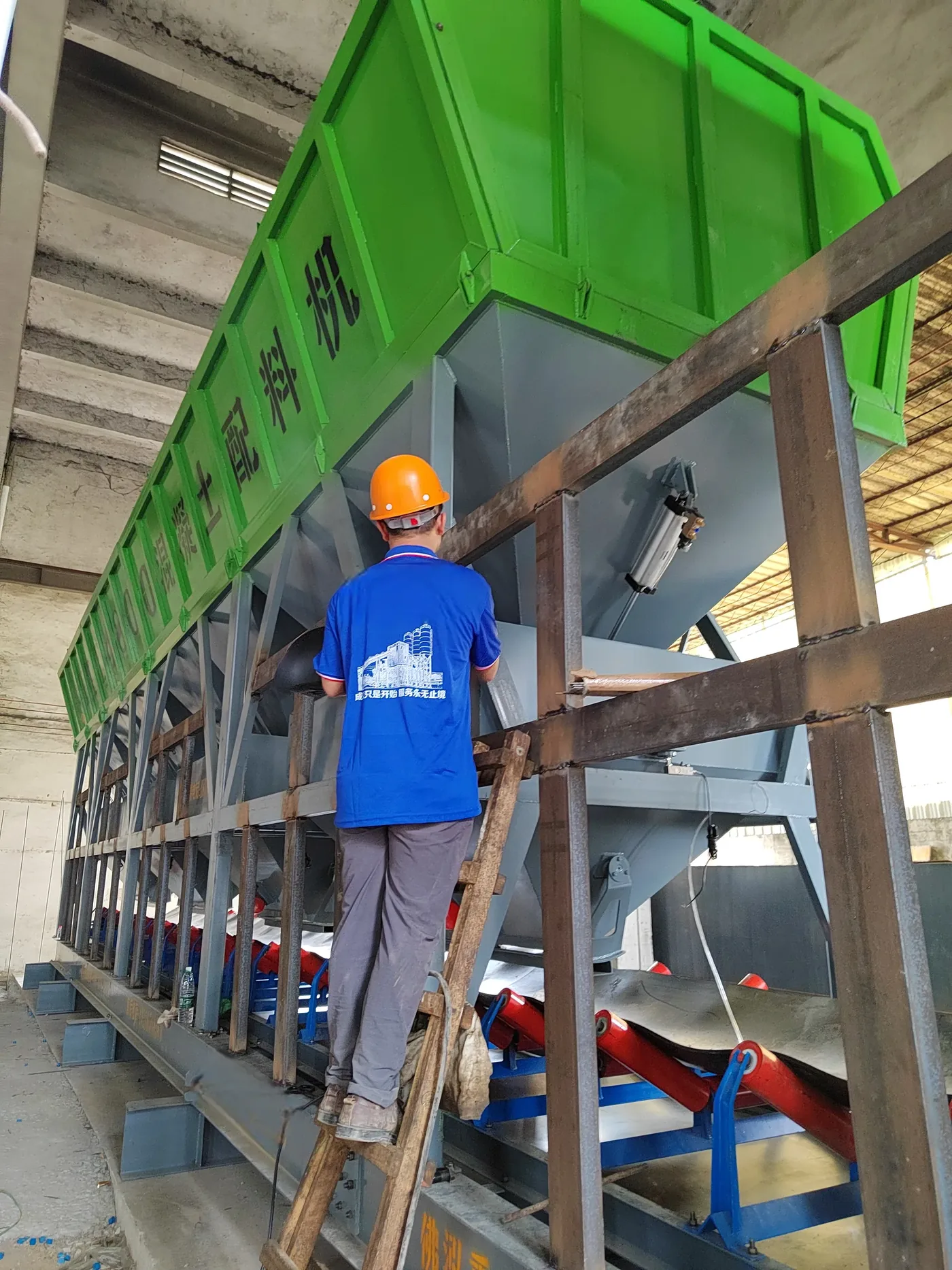

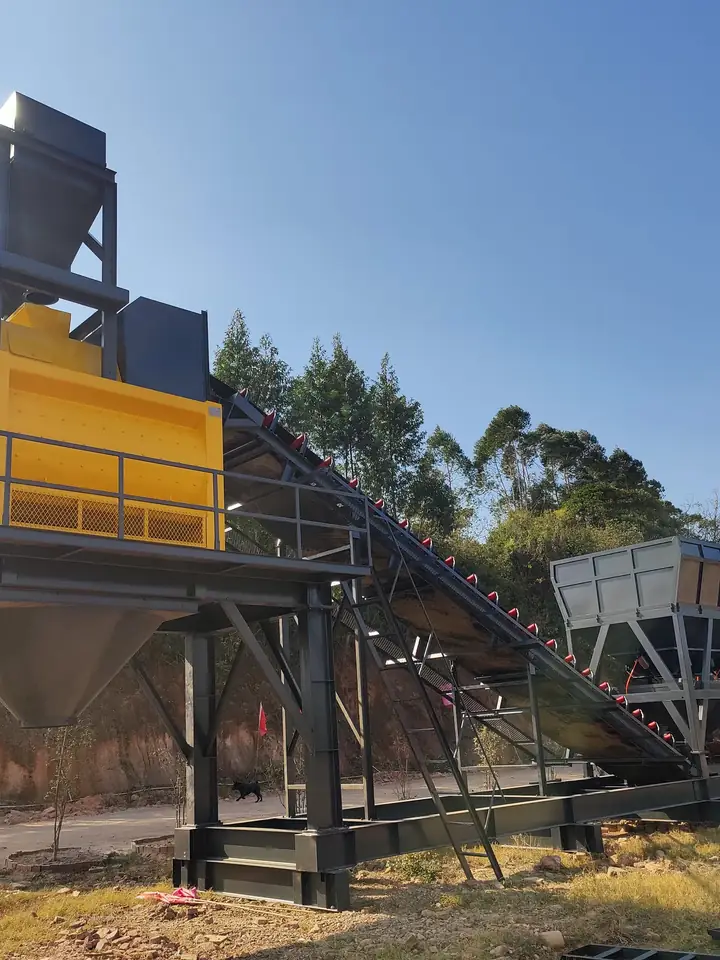

REAL EQUIPMENT / PROJECT PHOTOS
Explore equipment layouts, components and installation details. Request the specifications and supply list for the configuration you need.
COMPLETE PLANT CONFIGURATION

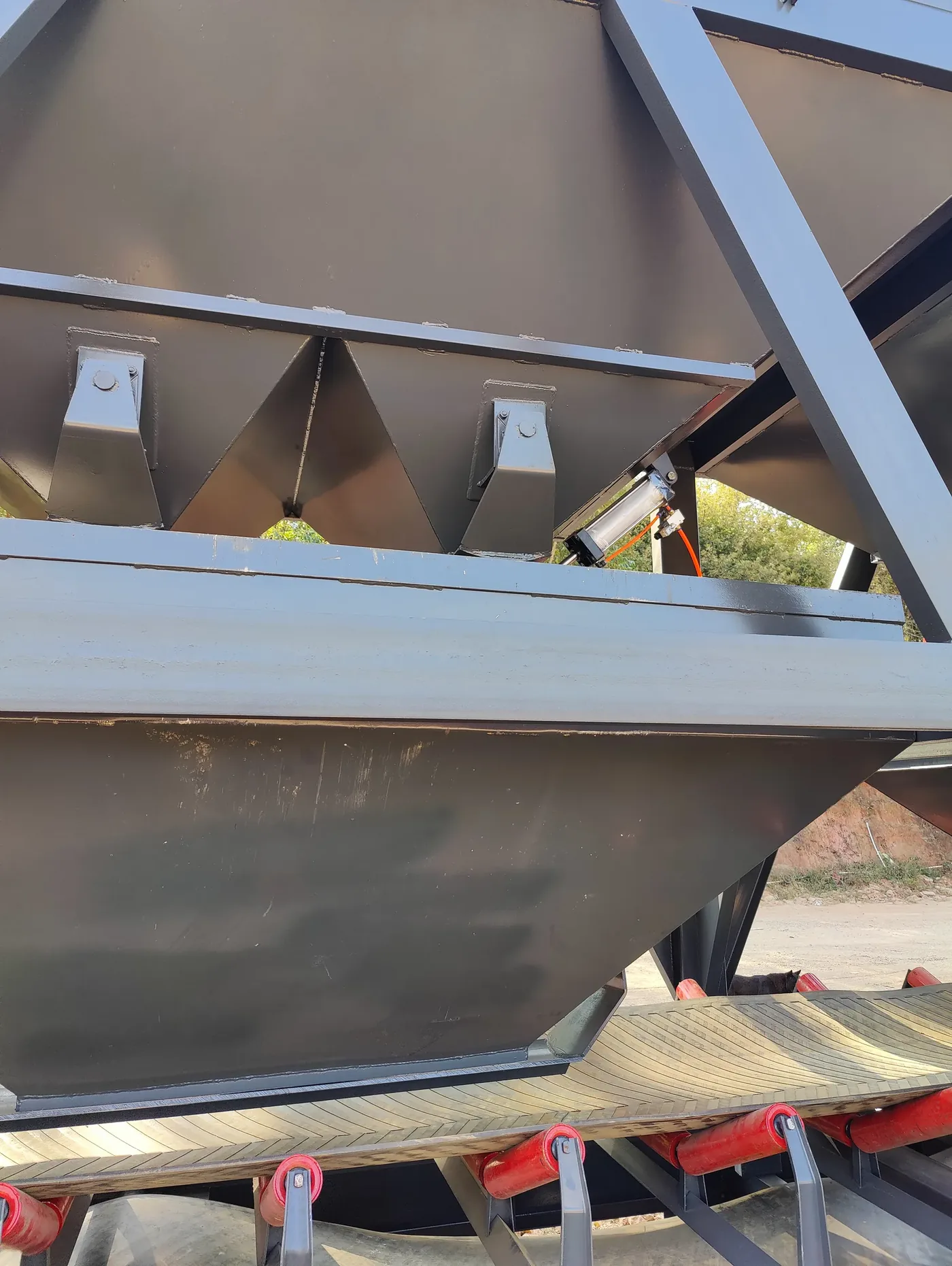

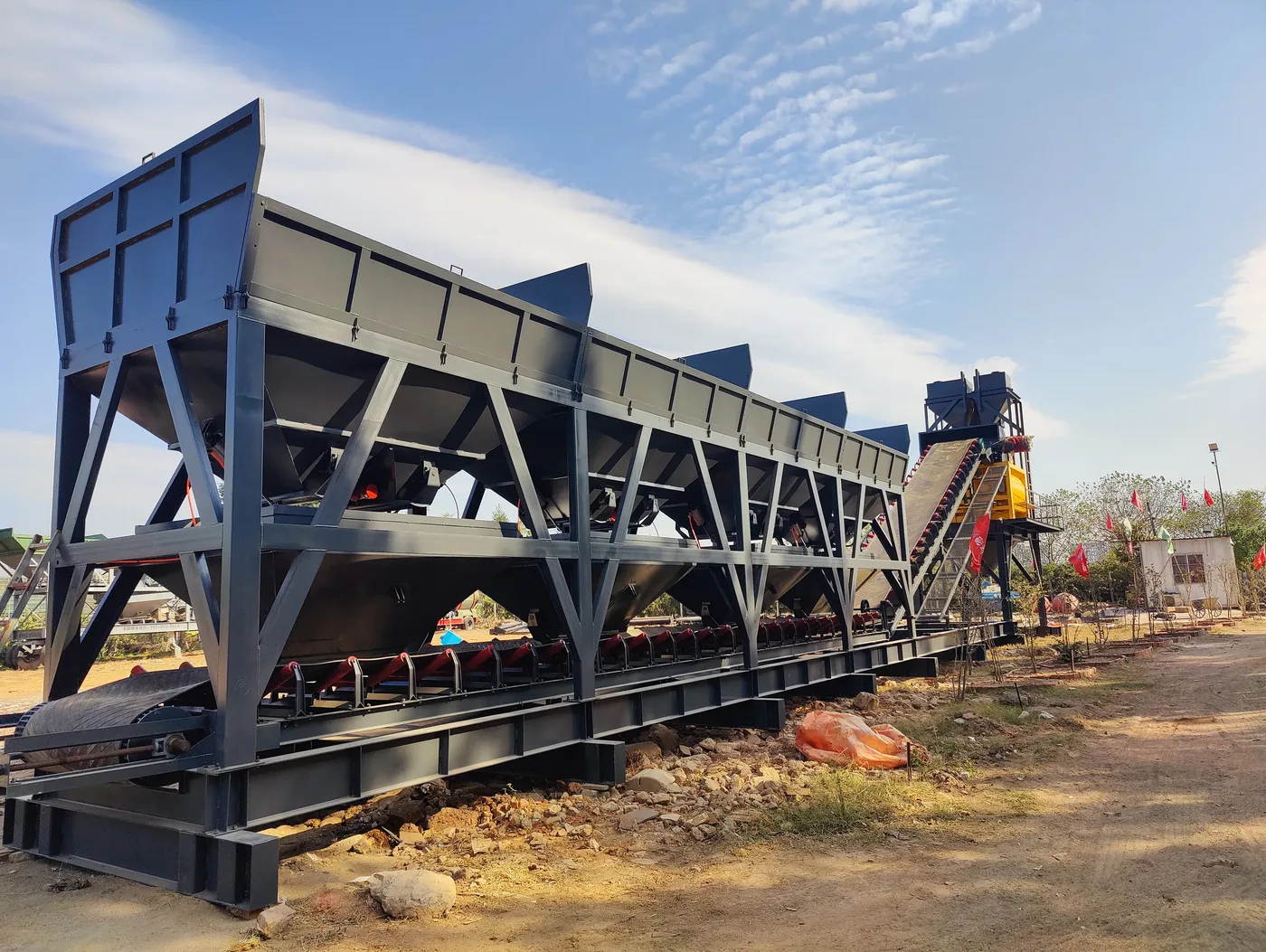

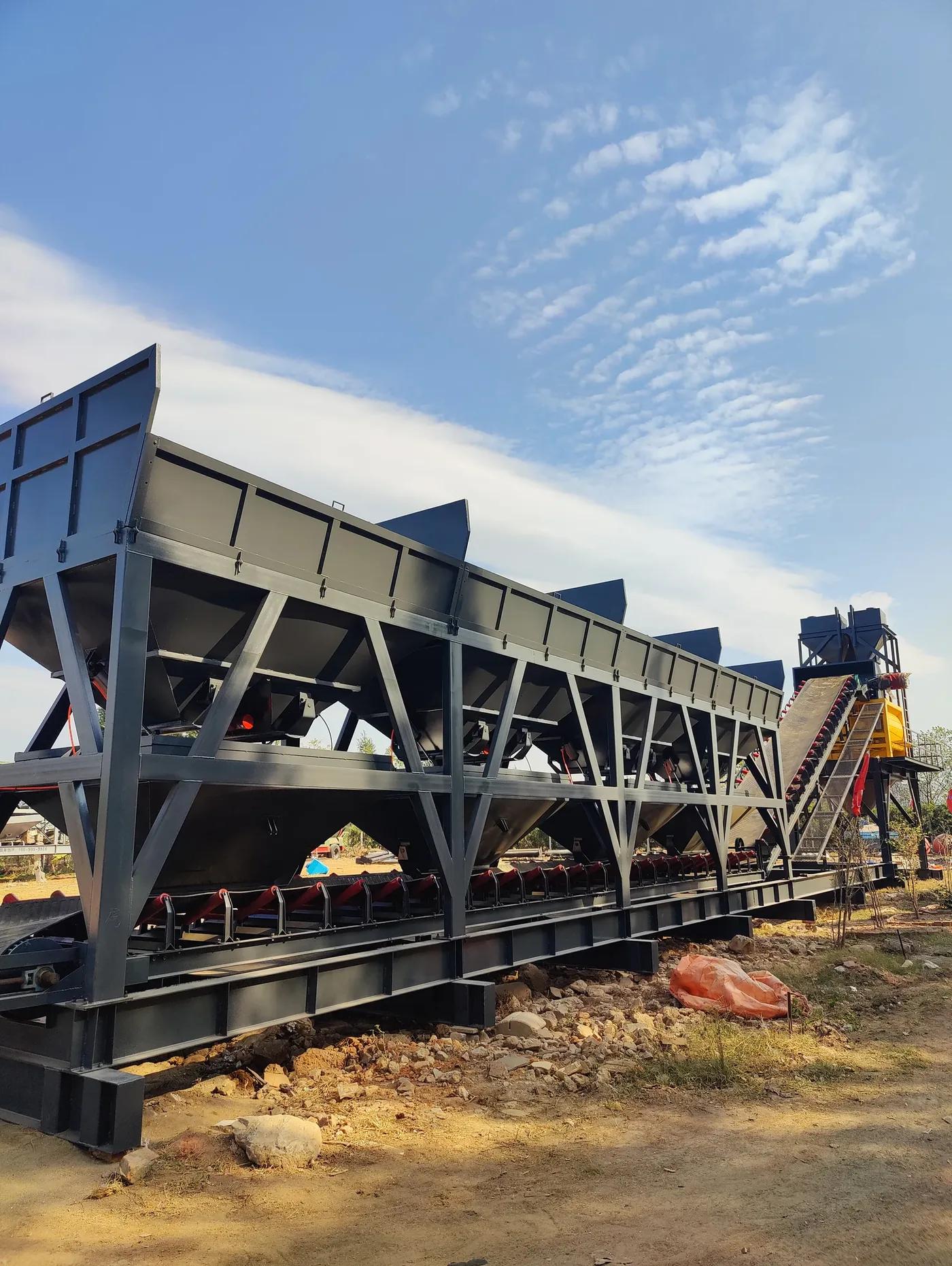

Organize storage, batching, and measurement according to four groups of aggregates, with feeding and conveying connected to the batching end and main building. The design of silos and conveying layout is determined according to the type of raw material, replenishment method, and site elevation differences.
Cement and other powders are stored separately and fed into weighing system via screw conveyors. The number of silos, capacity, replenishment cycles, and dust removal attachments are included in the complete plant configuration.
Configure storage, supply, and measuring devices according to the concrete mix, coordinating with aggregate and powder measurement. During enquiry, provide types of additives, water supply conditions, and formula requirements.
Using 3 m³ output per batch capacity to handle the feeding of each weighing system, completing mixing and discharging. Mixing procedures, cleaning, and maintenance schedules are determined in accordance with concrete specifications.
Link the batching, conveying, mixing, and unloading processes. The brand of control equipment, operation language, recipe management, and production record functions are determined item by item during procurement.
Organize the main building enclosure according to the box-type structure and determine ventilation, dust removal, inspection doors, and maintenance passages. The enclosure scope, component hoisting space, and on-site conditions should all be checked together.
PRODUCTION APPLICATIONS
For multiple formulations and multi-batch supply tasks, production is organized in combination with the daily supply plan, raw material replenishment, and concrete mixer truck scheduling.
For continuous material use in construction and infrastructure projects, a centralized production station is configured, and complete plant capacity is checked according to the casting schedule, peak volume, and reception rhythm.
When adding HZS180, check the existing material storage, feeding, power supply, and vehicle flow conditions, clarify the interfaces between new and old equipment, and determine the supporting scope that needs to be retained.
When carrying out ready-mix concrete supply or undertaking large-scale projects, HZS180 provides the corresponding production equipment configuration; the investment in station construction should be determined based on the supply tasks that can be undertaken, transportation conditions, and actual production arrangements.
CONFIRM BEFORE QUOTATION
SUPPLY & DELIVERY
List main mixer, batching, powder silo, conveying, metering, electrical control, and optional equipment item by item, distinguishing between new supply, retained existing equipment, and on-site support.
Confirm equipment layout, interfaces, foundation conditions, and maintenance space, and agree on the scope of drawings and documents in the order. complete plant dimensions and power are verified according to the final configuration.
Discuss equipment splitting, packaging, and shipping plans according to the destination, and agree on specific details of installation, commissioning, training, and spare parts support.
REQUEST HZS180 QUOTATION
Provide the purchase quantity, concrete application, target supply volume, site conditions, and destination to obtain a supply list including main mixer and supporting equipment. If there are existing technical requirements or equipment lists, they can be sent directly via email.
