Required Output and Production Schedule
Start with daily volume, working shifts and peak hourly demand. Compare rated plant capacities, then account for mixing time, material supply and truck availability.
Check output and configuration guide →CONCRETE BATCHING PLANTS / Complete Equipment
Complete Concrete Batching
Plant Systems
Buy HZS120, HZS180, twin-line, modular and enclosed concrete plants directly from our factory. We configure the mixer, storage, feeding and controls for your output, mix design and site.
HZS120 REFERENCE120 m³/h · JS2000
HZS180 REFERENCE180 m³/h · JS3000
PLANT OPTIONSStationary / Twin-Line / Modular / Enclosed
SUPPLY SCOPEcomplete plant equipment and core package
START WITH THE PRODUCTION TASK
Your Production Plan Determines the Plant Configuration
A complete plant combines aggregate batching, powder storage, conveying, weighing, mixing, discharge and controls. Select these systems together to meet your production requirements.
Mix Designs and Raw Materials
Specify aggregate types, powders, water and admixtures. Your mix designs determine the bins, silos, weighing systems, conveyors and mixer required.
View ingredients and main mixer range →Site, vehicles, and utilities
Provide site dimensions, vehicle access, power and water supply, and any height limits. Ground bearing capacity and support requirements also apply to modular and foundation-free layouts.
View site preparation checklist →Supply Scope and Destination
Tell us whether you need a complete plant or additional equipment, and where it will be delivered. List packing, shipping, installation, commissioning, training and spare parts separately in the quote.

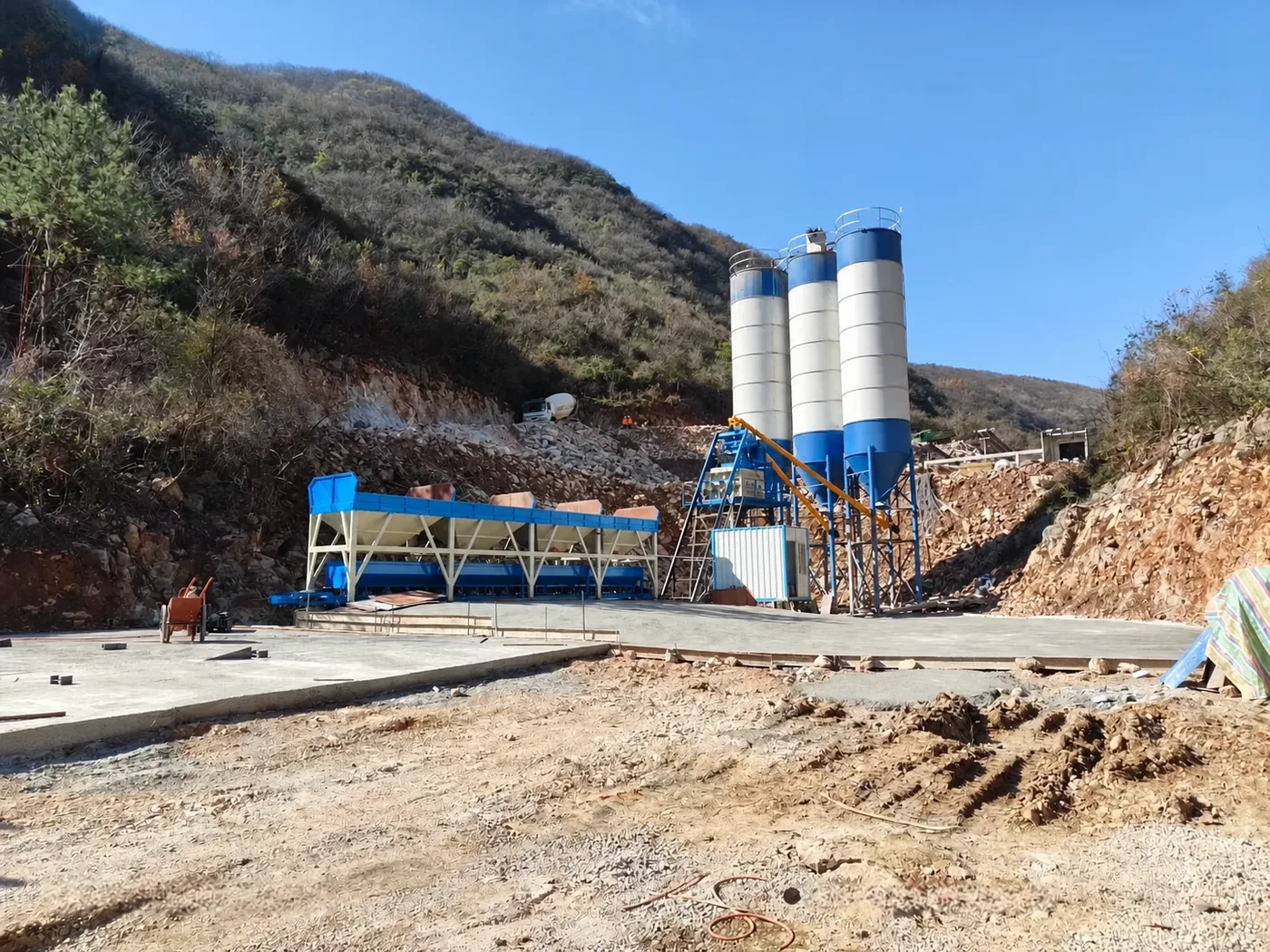

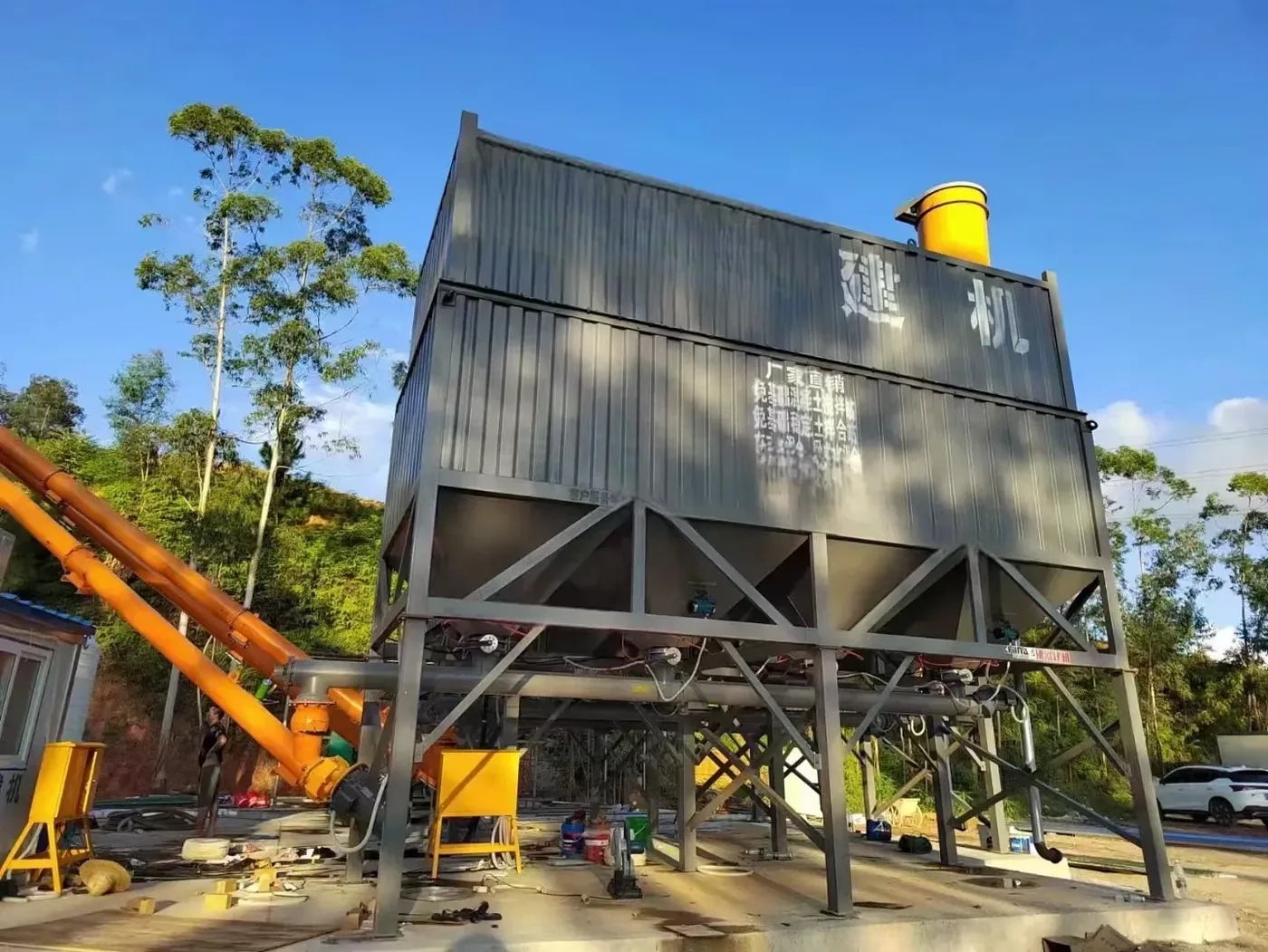

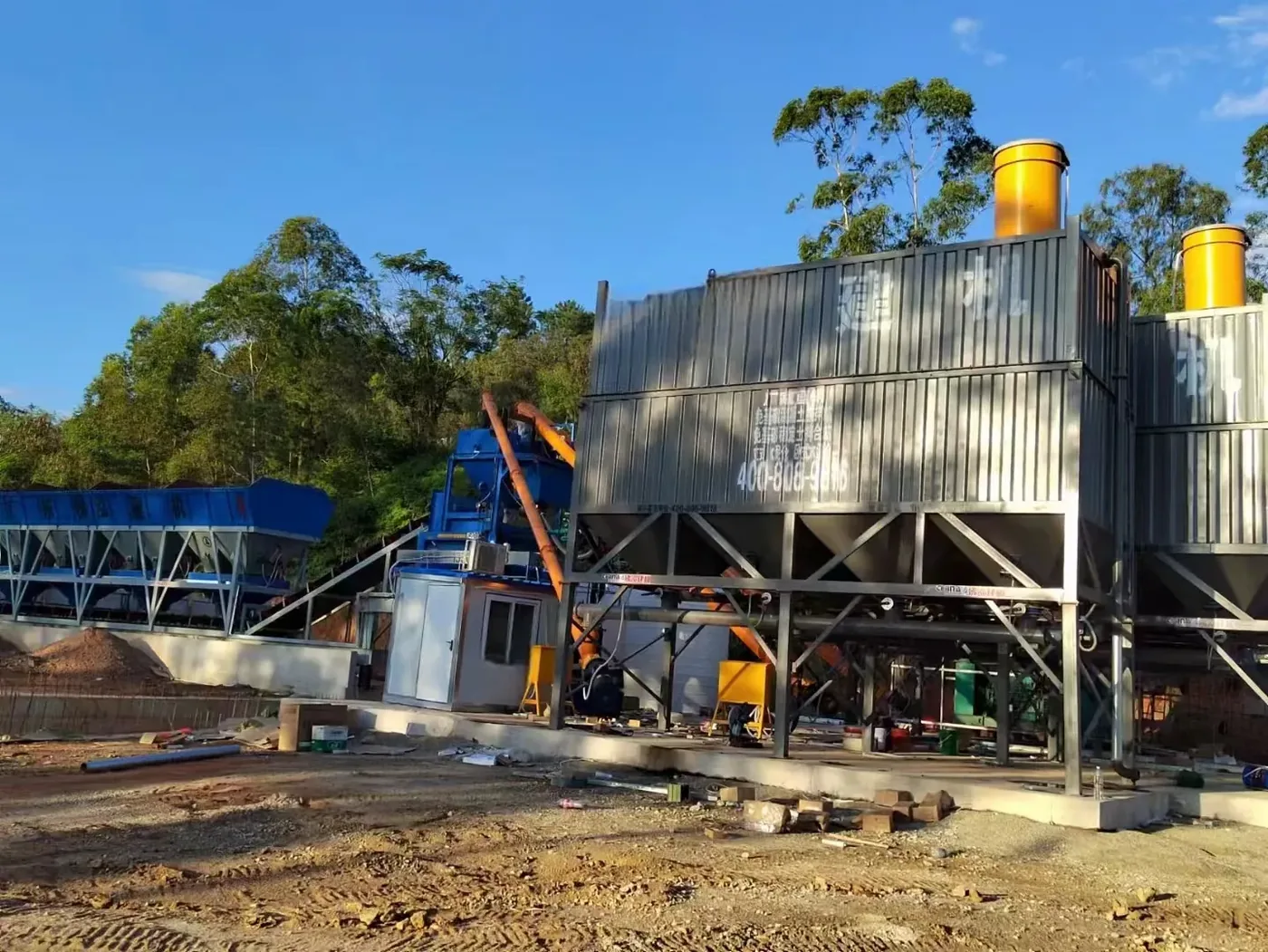

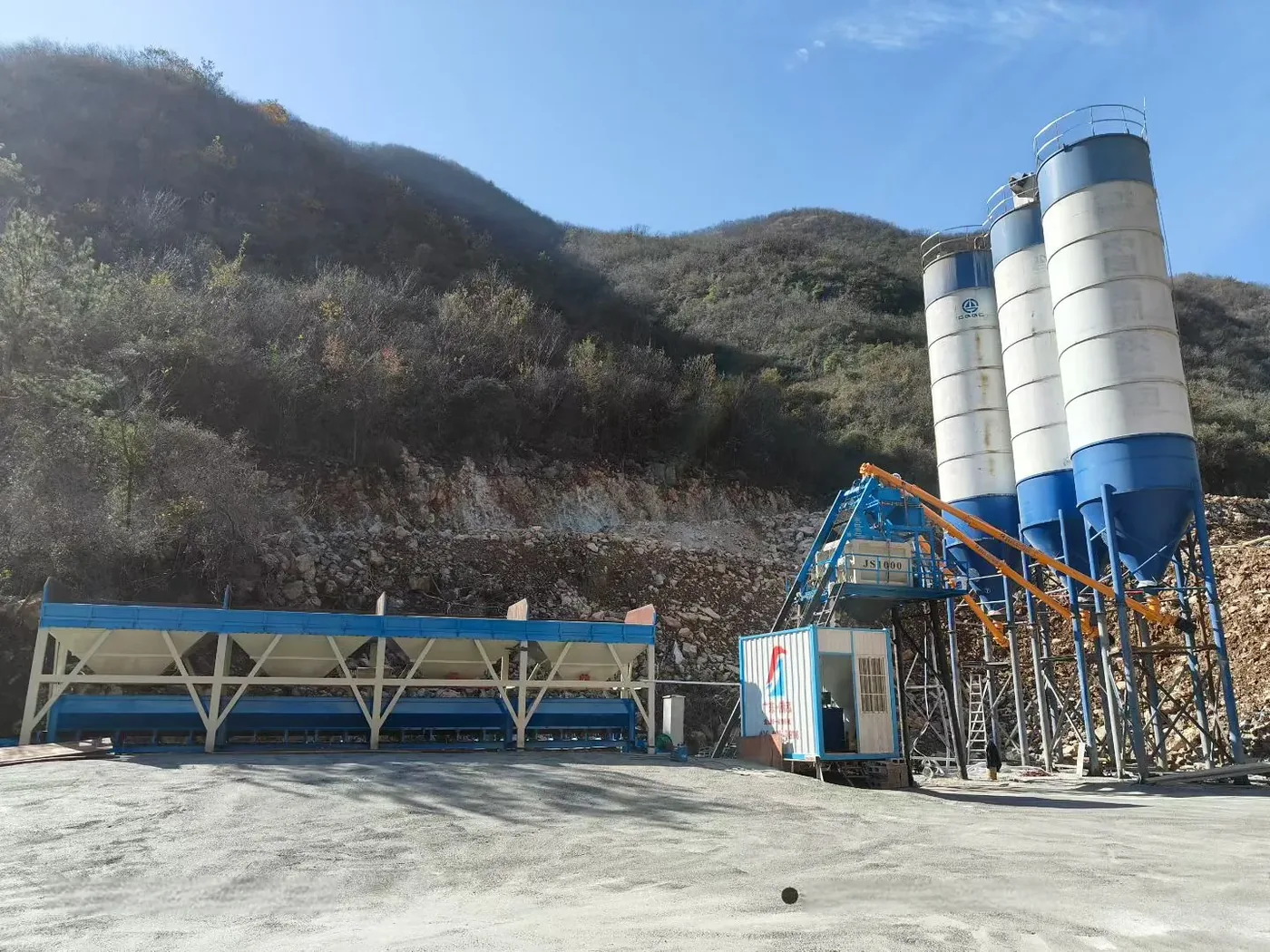

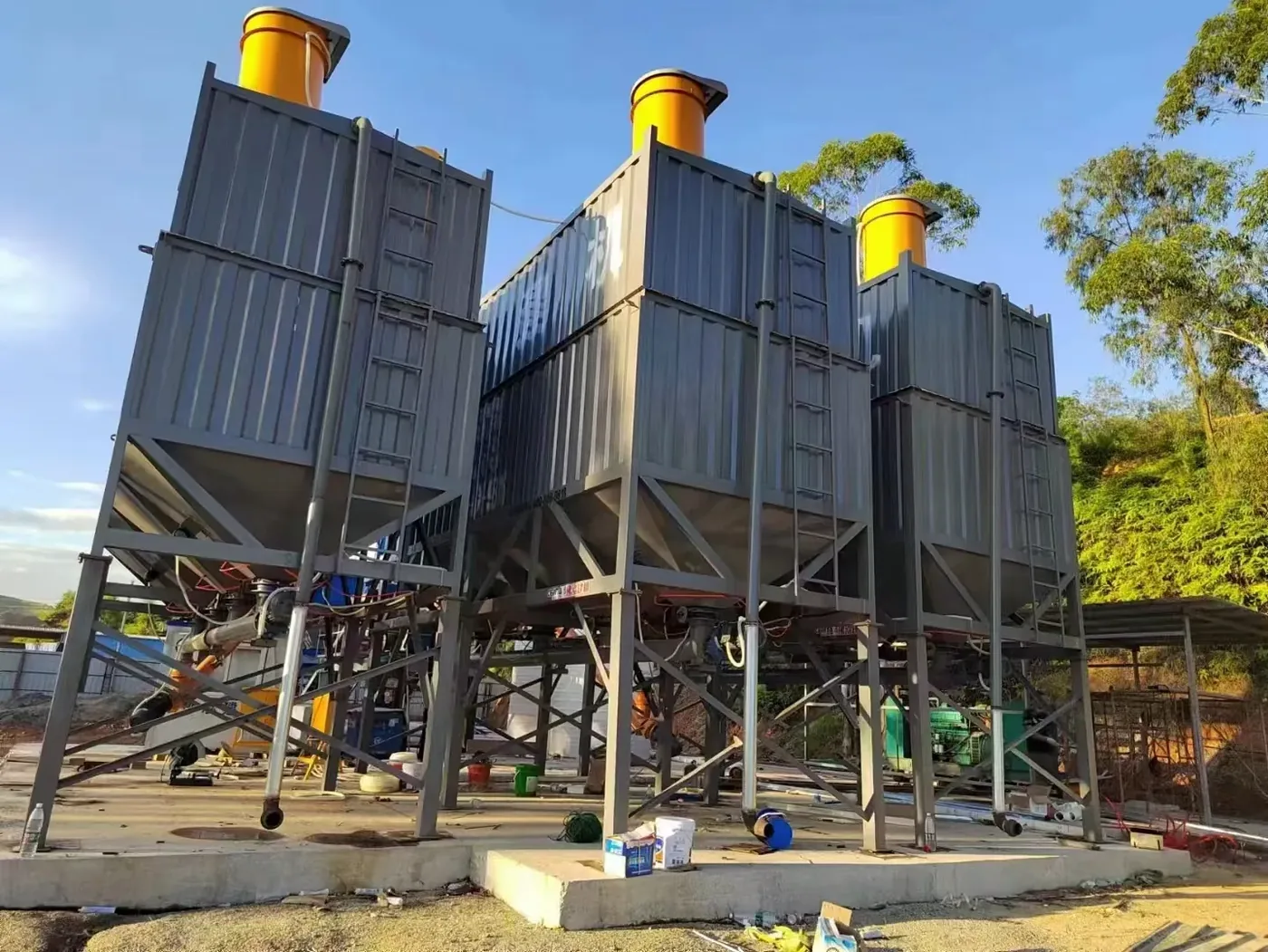

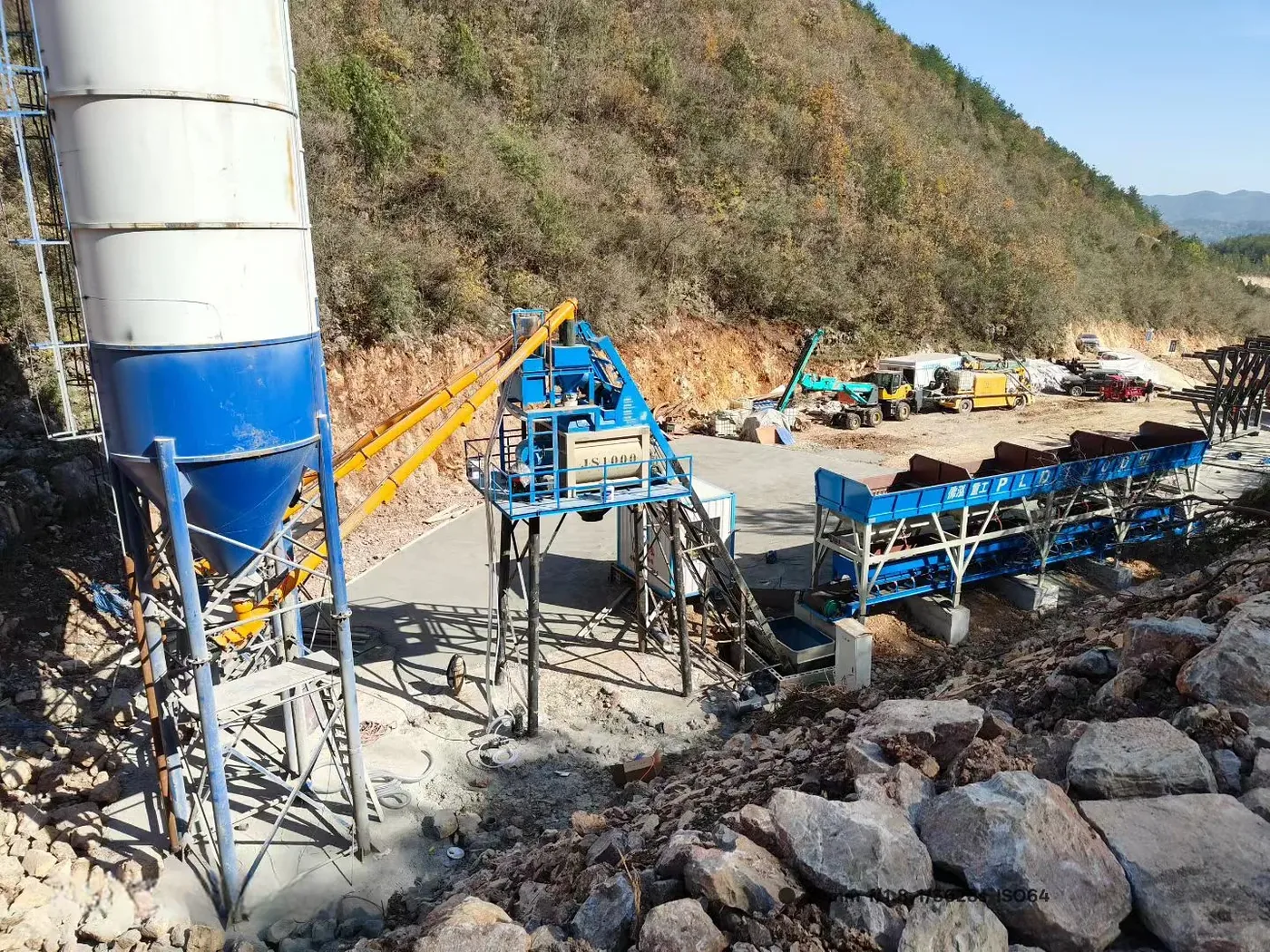

Check quotation with scope of supply →REAL EQUIPMENT / PROJECT PHOTOS
Equipment Layouts and Details
Explore equipment layouts, components and installation details. Request the specifications and supply list for the configuration you need.
PLANT FAMILIES & MODELS
Large Plant Types and Model Ranges
Compare HZS120 and HZS180 specifications, then explore twin-line, modular and enclosed layouts for your site and production plans.
120 m³/h CLASS
HZS120 batching plant
The reference configuration uses JS2000 twin-shaft main mixer, nominal output 2000 L / batch, main mixer mixing power 2 × 37 kW, discharge height 4.2 m.
View HZS120 Parameters and quotation ↗
180 m³/h CLASS
HZS180 batching plant
The reference configuration uses JS3000 twin-shaft main mixer, nominal output 3000 L / batch, main mixer mixing power 2 × 55 kW, 4 sets of aggregates, discharge height 4.2 m.
View HZS180 parameters and quotation ↗
TWO PRODUCTION LINES
twin-line concrete batching plant
Two sets of HZS systems are connected in parallel, allowing production lines, different formula scheduling, and maintenance to be arranged according to project needs. Specific capacity is jointly determined by the models of the two lines and actual cycle conditions.
View twin-line plant structure and configuration ↗
TRANSPORT & INSTALLATION

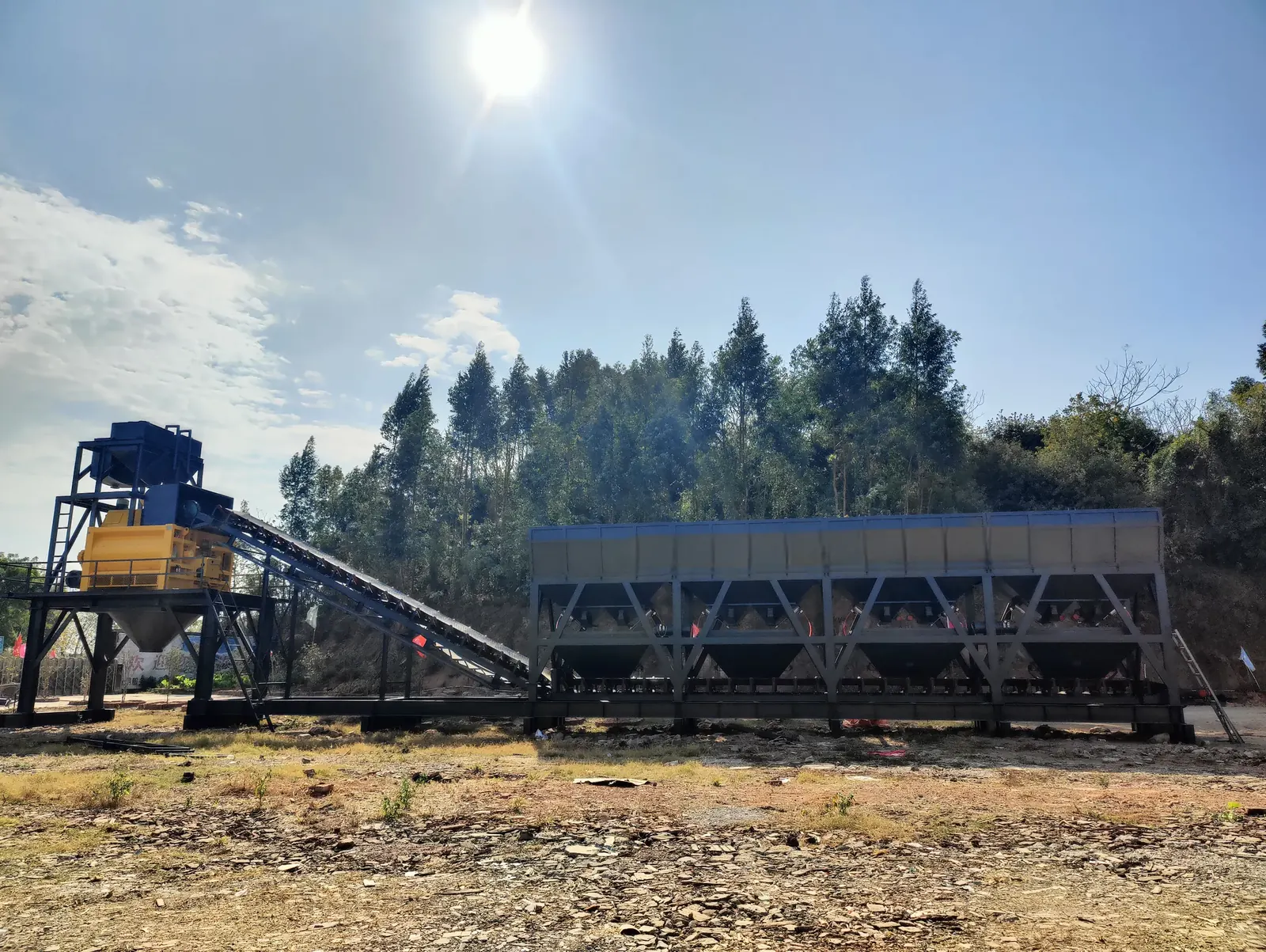

Modular / Foundation-Free Plants
The equipment is shipped and installed on-site by module. The existing series of entries include HZS50, 60, 75, 90, 120, and batching system can be selected in combinations of 2–5 compartments according to the type of raw material.
View modular series ↗

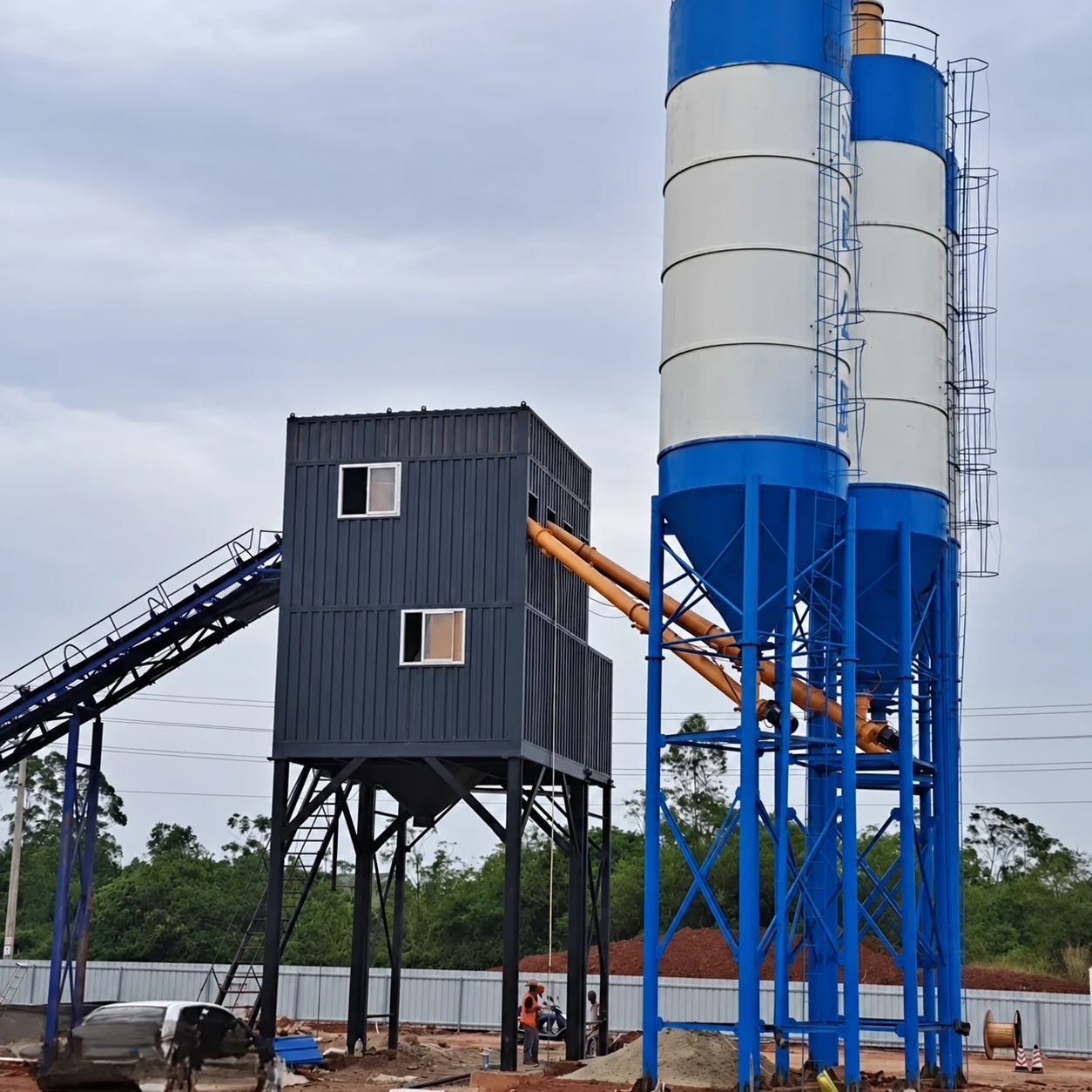

ENCLOSED BATCHING PLANTS
Compare Enclosed Plant Options

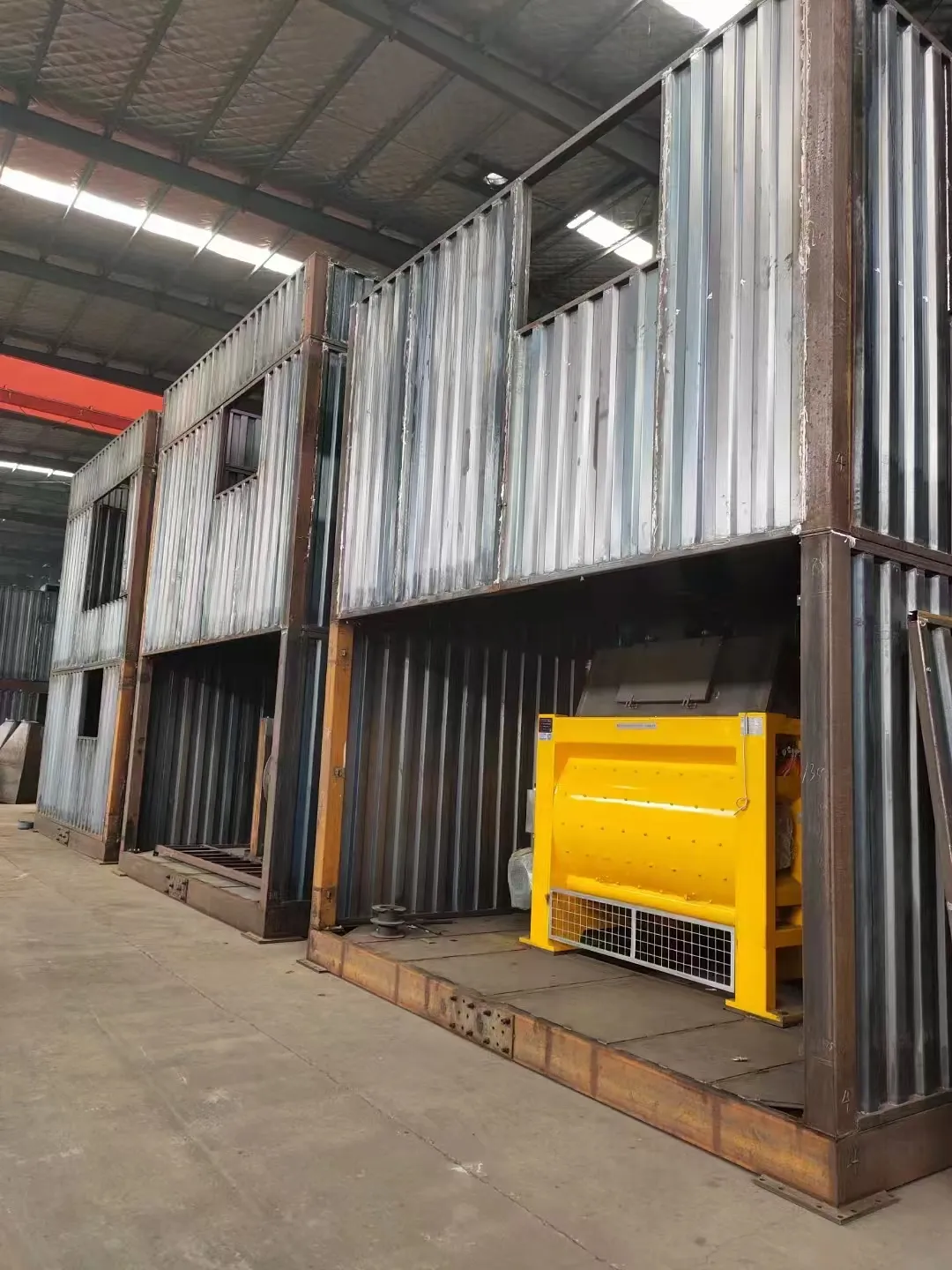

Enclosed plants house mixing and weighing equipment within a protective structure. Specify ventilation, dust collection and maintenance access for your site. Available series include HZS90, 120, 180 and 240.
- Local dust, noise, and site area management requirements
- Determine the packaging scope according to main mixer, metering, and maintenance space
- Ventilation, dust removal, electrical control, and safety configurations written in the supply list
REFERENCE SELECTION MATRIX
Compare Specifications and Buying Priorities
Compare the main specifications below, then match storage, feeding and discharge capacity to your production cycle.
| Station Type / Model | Approved References | Applicable Requirements | Enter Details |
|---|---|---|---|
| HZS120 | 120 m³/h; JS2000; 2000 L / batch; 2 × 37 kW; 4.2 m | It is necessary to clarify the ready-mix concrete or engineering project for the 120 m³/h level reference plan | Model details ↗ |
| HZS180 | 180 m³/h; JS3000; 3000 L / batch; 2 × 55 kW; 4 sets of aggregate; 4.2 m | Projects with higher requirements for large single-line capacity, material storage, and continuous production organization | Model details ↗ |
| Double Line batching plant | Two sets of HZS systems in parallel; configuration confirmed per project | Projects requiring separate-line production, two-formula scheduling, or maintenance arrangements | Series details ↗ |
| Modular Series | HZS50 / 60 / 75 / 90 / 120; 2–5 bin batching combinations. | Emphasize projects for split shipment, on-site modular installation, and site adaptation. | Series details ↗ |
| Box-type packaging series | HZS90 / 120 / 180 / 240 | Projects that require main building enclosure and supporting ventilation, dust removal and maintenance facilities | Series details ↗ |
m³/h is listed in the catalog theoretical capacity. The actual hourly output is related to the formula, mixing cycle, supply of aggregates and powders, discharge, and the receiving rhythm of the mixing truck; supply parameters are subject to the confirmed equipment list.
QUOTATION INPUTS
Information Needed for an Accurate, Comparable Quote
Send the project details you already have. Our team will work through any remaining specifications and prepare the equipment list, options and quotation.
Production and Use
- Target daily production and peak hour demand
- Production shifts and expected working hours
- ready-mix concrete, engineering supply or other uses
Formulas and Stored Materials
- Types of aggregates, powders, and additives
- Common Formulas and Single Batch Requirements
- Inventory, replenishment, and loader feeding methods
Site and utilities
- Available length and width, road, and height restrictions
- Local voltage, frequency, and water supply conditions
- Environmental, climate, and enclosure requirements
Destination and Service Scope
- Project country, destination port or construction site
- Existing equipment and interface information
- Installation, commissioning, training, and spare parts requirements
BUYER QUESTIONS
Concrete Batching Plant Buying Questions
Compare plant types, output, site requirements and what to include in your quotation.
Should I choose HZS120 or HZS180?
Target hourly demand, production shifts, main mixer batch capacity, aggregate and powder supply, mixer truck receiving rhythm, and future expansion plans jointly determine the station type. HZS120 and HZS180 120 m³/h and 180 m³/h are cataloged in theoretical capacity, and on-site output is calculated in combination with complete plant cycles.
What is the difference between theoretical capacity and the actual hourly output?
The theoretical value is based on the specified cycle conditions. Actual production still involves feeding, measuring, mixing, and discharging. Recipe, mixing time, material moisture, supply continuity, and vehicle waiting will all affect the effective cycle.
When should I choose a twin-line plant?
For projects that require two production line in parallel, different formulation line arrangements, or maintaining production capacity during maintenance, a twin-line scheme can be adopted. The models of the two lines, shared systems, and the scope of independent systems are to be included in the scheme.
What ground preparation does a modular plant require?
Prepare suitable ground and supports for the equipment loads. The design should account for bearing capacity, leveling, drainage, wind loads, traffic and local engineering requirements.
What equipment should a plant quotation include?
It is usually necessary to check each item of aggregate batching and conveying, powder silo and screw conveying, weighing, main mixer, unloading, air circuit, electrical control, dust removal, and safety accessories. Packaging and transportation, installation and commissioning, training, spare parts, and on-site construction scope should also be listed separately.
APPLICATION ENTRIES
Explore Plants by Production Application
EXPLORE EQUIPMENT & SUPPORT
Explore the Complete Plant System
Explore aggregate handling, powder storage, weighing and control equipment for your plant.
GET A PLANT QUOTATION
Send Your Plant Requirements for a Quote
Send your required output, concrete application, raw materials, site dimensions, power supply and destination. We will prepare a suitable plant configuration and itemized quote.
