What powder to convey
Specify the name of cement or other powders and known material conditions. The requirements for conveying and discharging different materials need to be checked separately.
CEMENT SCREW CONVEYORS
Cement Screw
Conveyor
Supply LSY163, LSY180, LSY230 powder materials screw conveyor, for connecting cement silo, powder measuring ends, or main mixing buildings. The model and configuration are confirmed according to the material, length, inclination, inlet and outlet interfaces, and installation conditions.
AVAILABLE MODELSLSY163 / LSY180 / LSY230
MATERIALCement and project-designated powders
SELECTION BASISMaterial / Length / Inclination / Interface
SUPPLY SCOPESingle machine replacement or complete plant matching
MATCH THE CONVEYING ROUTE
Conveying route decision
Specific Model
The LSY model needs to be combined with materials, center distance, installation angle, and both end interfaces to form a complete and accurate quotation.
Required length and inclination
Provide the center distance, height difference, and installation angle from the silo outlet to the metering end, along with on-site dimensions or layout diagrams.
How both ends connect
Confirm the feed inlet, discharge outlet, flanges, flexible connections, and connection directions with cement silo, the weighing hopper, or the main building.
How it operates on site
Specify power standards, operation arrangements, installation environment, support conditions, and purchase quantities, used to verify the drive and scope of supply.

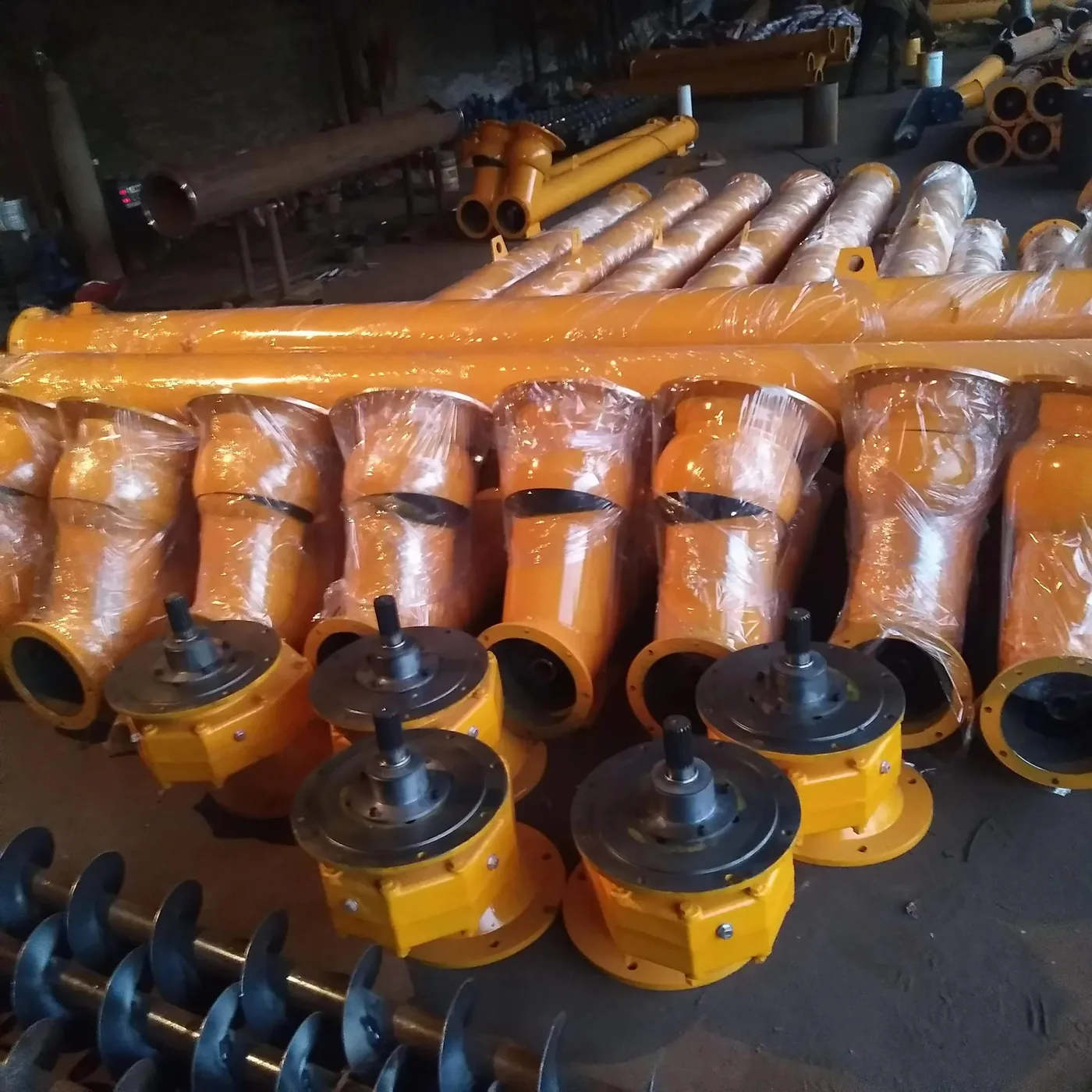

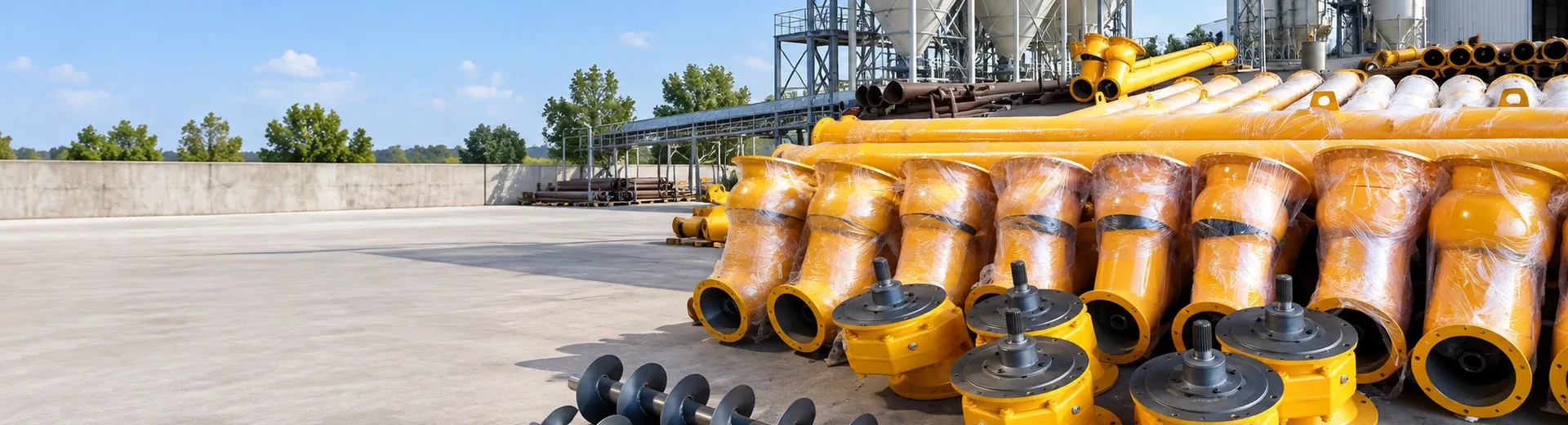

REAL EQUIPMENT / PROJECT PHOTOS
Equipment Layouts and Details
Explore equipment layouts, components and installation details. Request the specifications and supply list for the configuration you need.
AVAILABLE LSY SERIES
LSY163、180、230
All three models can use enquiry. The page does not preset conveying capacity and motor power; specific configurations need to be confirmed based on project input.
LSY163
Can be used for new station setups or replacement of existing powder conveying locations. Please provide materials, length, tilt angle, interfaces, and power conditions.
enquiry LSY163LSY180
Powder material route, support positions, and equipment at both ends collectively determine the model and interfaces of screw conveyor.
enquiry LSY180LSY230
Please submit the planned materials to be conveyed, route dimensions, installation angles, and connecting equipment, based on which we will confirm the complete supply list.
enquiry LSY230Existing equipment replacement
In addition to the model, please provide the nameplate, complete machine and interface photos, center distance, rotation direction, and installation position to facilitate checking replacement conditions.
Submit replacement requestSELECTION MATRIX
screw conveyor selection matrix
The final selection of LSY163, 180, and 230 must be based on the same set of project data.
| Modeling Input | Why Needed | Please provide | For Confirmation |
|---|---|---|---|
| Powder Material | Material status will affect conveying and unloading conditions | Material Name and Information | Model and conveyor configuration |
| Length | Decide the actual delivery route and equipment dimensions | Distance between both ends or layout diagram | Overall machine length and segmentation plan |
| Inclination and Elevation Difference | Related to installation direction and operating conditions | Installation angle, starting point and ending elevation | Route and support layout |
| Inbound and Outbound Interfaces | Needs to match with silo, weighing hopper, or main building | Dimensions, flanges, orientation, and photos | Connectors and Supply Boundaries |
| Power Supply and Operation | Used for Verifying Drive and On-site Conditions | Voltage, frequency, operation arrangement | Motor and electrical configuration |
| Installation and Transportation | Affect support, container loading, and on-site assembly | Destination, site entry restrictions, hoisting conditions | Packaging, transport, and installation requirements |
This page only publishes available models and does not provide unconfirmed project conveying capacity or power. Official parameters are based on the quotation list confirmed after considering material, length, inclination, and interfaces.
SILO TO WEIGHING SYSTEM
Put the conveyor back into the complete powder route for selection
screw conveyor usually connects the silo discharge end with powder metering or mixing equipment. For new stations, it should be confirmed together with the silo, metering, and main building; for replacement equipment, it should be based on existing interfaces and installation space.
- For new complete plant: simultaneously confirm cement silo, powder types, and metering end positions
- Single machine procurement: clearly specify actual center distance, inclination angle, and support points
- Equipment replacement: submit old machine model, nameplate, interfaces, and panoramic photos
- Multi-bin system: list each conveyor corresponding to the bin body and material one by one
- Export projects: provide destination, power standards, and packaging/transportation requirements
QUOTATION INPUTS
A enquiry list that can be sent directly
Submitting the following four sets of information along with on-site photos can reduce back-and-forth confirmations.
Model, material, quantity
- LSY163 / 180 / 230 or to be selected
- Powder Name
- Purchase quantity and purpose
Length, angle, height difference
- Center Distance Between Two Ends
- Installation Tilt Angle
- Starting and ending elevation
Bin and metering end
- Inlet and outlet interface size
- Flange and Connection Direction
- On-site layout diagram or photos
Power, location, installation
- Voltage and Frequency
- Destination country and project location
- Support, site entry, and hoisting conditions
BUYER QUESTIONS
Common procurement questions for screw conveyor
The key to accurate selection is to check the model, material, route, and interface together.
LSY163, 180, 230, how to choose?
Materials, conveying length, installation tilt angle, inlet and outlet interfaces, and operating conditions together determine the applicable model.
Can only providing the old machine model be used directly quotation?
You can submit enquiry. Photos of the nameplate, the complete machine, and interfaces, actual center distance, installation angle, power supply and connected devices help to form a replacement solution that matches the existing installation location.
What is the hourly conveyance and motor power?
Conveying capacity and drive configuration are related to material, length, inclination, and operating conditions. This page does not provide standard values; after project confirmation, official parameters and the quotation list prevail.
Can it be paired with vertical or horizontal cement silo?
It can be matched according to the cement silo discharge location and metering end route. Please also provide the form of the silo, interface dimensions, layout diagram, and the powder to be transported.
How to transport and install long-distance equipment?
Length, destination, shipping restrictions, and on-site entry conditions together determine packaging, segmentation, supports, and installation requirements, and are written into the supply list.
RELATED EQUIPMENT
Related equipment and procurement information
GET A CONVEYOR QUOTATION
Send us the model and the actual delivery route together
Please select LSY163, LSY180, LSY230, or "To be selected", and provide the material, length, tilt angle, end connectors, power supply, quantity, and destination. Based on this, we confirm the configuration with quotation.
